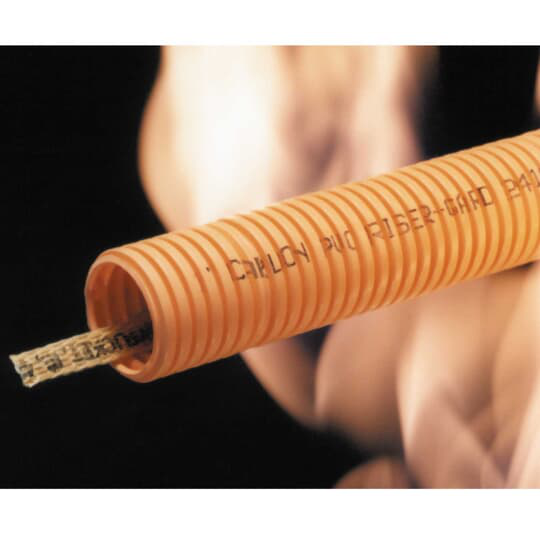

3 INX750FT R/G PVC CORR ORN W/TAPE Riser-Gard Flexible Raceway

The Carlon 3 INX750FT R/G PVC CORR ORN W/TAPE is a 3-inch orange corrugated non-metallic flexible raceway designed for riser and general purpose applications. This flexible raceway is UL Listed to UL 2024 standards and is suitable for use in vertical runs within shafts or between floors, as well as other areas outside the plenum. It is available with factory pre-installed pull tape, facilitating cable installation. The product is intended for electrical distributors and lighting solutions providers requiring reliable wire and cable management in commercial and industrial environments. It complies with NEC Articles 725, 770, 800, and 820 for riser, general purpose, and optical fiber/telecommunication applications.

Specifications

• Manufacturer: Carlon
• Manufacturer Part #: DL4X1C-750
• Material: PVC
• Color: Orange
• Nominal Size: 3 inch
• Length: 750 ft
• UL Listing: UL 2024 (UL e151168)
• Weight: 0.74 lbs per foot
• Application: Suitable for vertical runs in shafts or between floors, and areas other than the plenum
• RoHS Status: Compliant with EU Directive 2011/65/EU and Amendment 2015/863

Features

• Non-metallic, corrugated flexible raceway
• Factory pre-installed pull tape for ease of cable pulling
• Meets UL 2024 Standard for riser and optical fiber/communications raceways
• Suitable for riser and general purpose applications per NEC Articles 725, 770, 800, and 820
• Footage sequentially marked for accurate measurement
• Meets IPS outside diameter dimensions
• Storage temperature range: -4°F to 158°F; Handling temperature range: -4°F to 104°F
• No UV protection; not suitable for outdoor use
• Not recommended for exposed applications but suitable for direct burial
