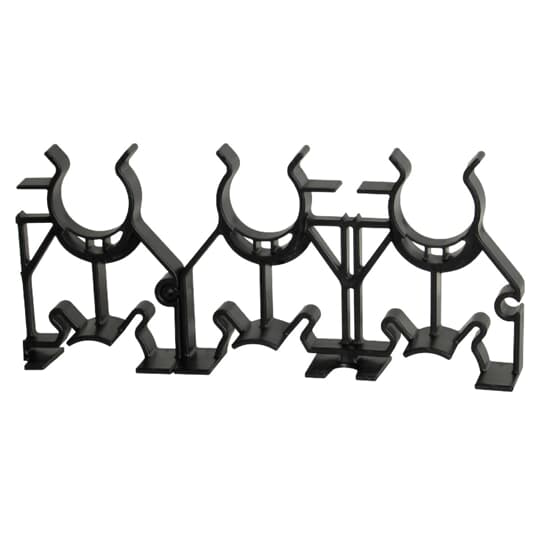

3 INCH X 3 INCH INTERMEDIATE SPACER – Snap-Loc Spacer

The Carlon 3 Inch x 3 Inch Snap-Loc Styrene Intermediate Spacer is designed for use in electrical distribution and wire and cable installations, providing stable and consistent separation of conduit in concrete encasements and direct burial applications. This non-metallic spacer is suitable for lighting solutions and switchgear supplier projects requiring precise conduit spacing and secure positioning.

Specifications

• Manufacturer: Carlon
• Manufacturer Part #: S289LLN
• Material: Non-Metallic
• Size: 3 x 3 inches
• Weight: 13.8 lbs
• Package Quantity: 60 units per carton
• Country of Origin: United States
• UPC: 034481004509

Features

• Side dovetail rail-and-groove design enables side-by-side interchangeability of conduit spacer sizes while maintaining horizontal stability
• Locking key ways in intermediate spacers eliminate the need for costly top spacers and allow use of beaded straps to secure conduit
• Designed specifically for nonmetallic duct with maximum outer diameter dimensions per NEMA TC-2, TC-6 and 8, TC-10, and ASTM F512 standards
• Innovative vertical and horizontal interlocking design with tapered joining slots for easy job site assembly
