3 INCH SCH 40 STD 90 DEG ELBOW
SKU: #17486
Part: #UA9AL
UPC: 034481060482
3 INCH SCH 40 STD 90 DEG ELBOW
SKU: #17486
Part: #UA9AL
UPC: 034481060482
Next day delivery
Description

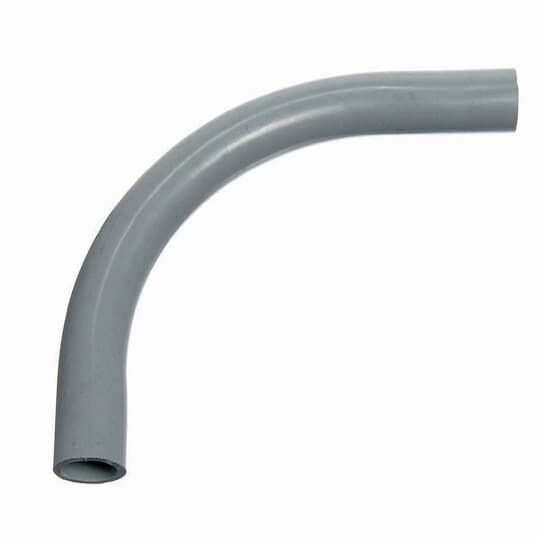

3 INCH SCH 40 STD 90 DEG ELBOW - PVC Conduit Fitting
The 3 Inch Schedule 40 Standard 90 Degree Elbow by Carlon is a rigid non-metallic conduit fitting designed for electrical wire and cable routing with a standard bend radius. It is used to change the direction of conduit runs in electrical installations, suitable for both aboveground and underground applications in compliance with the National Electrical Code®. This elbow is a key component for electrical distributors and switchgear suppliers providing durable, corrosion-resistant conduit solutions.
Specifications
- Size: 3 Inches
- Bend Angle: 90 Degrees
- Bend Radius: Standard
- Material: PVC
- Color: Gray
- Outside Diameter: 3.5 Inches
- Product Weight: 296.56 grams
- Standards: UL E323335
- Manufacturer: Carlon
- Manufacturer Part #: UA9AL
- Country of Origin: United States (US)
Features
- Non-metallic construction ensures corrosion resistance and eliminates rusting
- Lightweight design facilitates ease of installation and fabrication on site
- Nonconductive material enhances electrical safety
- Suitable for outdoor use with resistance to sunlight and temperature variations
- Meets NEMA TC-2, Federal specification WC1094A, and UL 651 requirements
