3 INCH MOGUL PULLING ELBOW
SKU: #65924
Part: #MALB-8
UPC: 042269396159
3 INCH MOGUL PULLING ELBOW
SKU: #65924
Part: #MALB-8
UPC: 042269396159
Next day delivery
Description

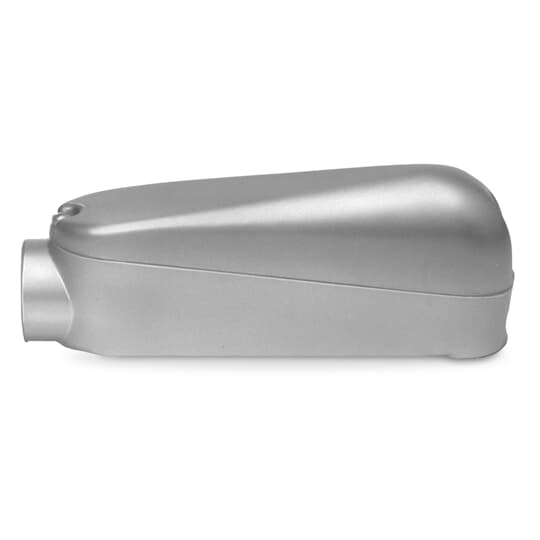

3 INCH MOGUL PULLING ELBOW - Aluminum Mogul Pulling Elbow
The 3 Inch Mogul Pulling Elbow is a die-cast aluminum conduit body designed for use with rigid and IMC conduit systems. It provides a spacious, accessible wiring chamber that facilitates pulling conductors, making splices, and bringing electrical service into a location. This product is suitable for electrical distributors and lighting solutions suppliers requiring durable and corrosion-resistant conduit fittings.
Specifications
- Material: Die-cast Aluminum Alloy
- Application: For use with Rigid/IMC Conduit
- Includes: Cover and Gasket
- Weight: 10.85 lbs
- Dimensions: Height 5.68 in, Length 22.5 in, Width 8.25 in
- UL Listed and CSA Certified
Features
- Spacious wiring chamber for easy conductor pulling and splicing
- Dome cover provides extra bending room
- Deep-slotted, zinc-plated steel cover screws for secure and faster installation
- I-beam construction adds strength and durability
- Precision machined threads for trouble-free field installation
- Clean cover edges ensure effective gasket sealing
- Corrosion-resistant aluminum alloy construction
- Clear UL, CSA, and volumetric-capacity markings for inspection approval
