3 in. x 90-Degree x 18 in. Radius Plain End Schedule 40 Special Radius Elbow
SKU: #154639
Part: #5133858
UPC: 088700014732
3 in. x 90-Degree x 18 in. Radius Plain End Schedule 40 Special Radius Elbow
SKU: #154639
Part: #5133858
UPC: 088700014732
Description
3 in. x 90-Degree x 18 in. Radius Plain End Schedule 40 Special Radius Elbow – Electrical Conduit Fitting
The CANTEX 5133858 is a 3-inch Schedule 40 special radius elbow designed to change the direction of electrical conduit runs by 90 degrees. It is suitable for use in electrical distribution and lighting solutions where rigid PVC conduit is required to protect wire and cable. This fitting is manufactured from rigid PVC, ensuring durability and compliance with electrical standards.
Specifications
- Size: 3 inches

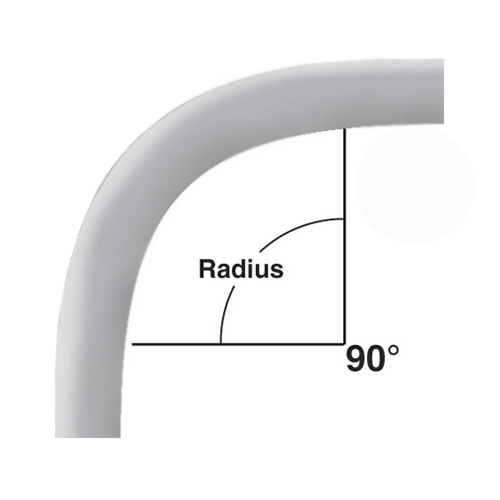

- Radius (R): 18 inches
- Dimension "O": 18 inches
- Dimension "H": 18 inches
- Minimum dimension "S": 3 1/8 inches
- Material: Rigid PVC
- Product Weight: 2.0740 lbs
- Manufacturer Part #: 5133858
- UPC: 088700014732
- Certifications: ETL Listed, conforms to UL651 and NEMA TC3
- Bend Tolerance: ±2°
Features
- Plain end design for easy conduit connection
- Special radius elbow to reduce conduit fill and facilitate wire pulling
- Complies with NEC Article 352 for use in electrical conduit systems
- Durable rigid PVC construction suitable for electrical wire and cable protection
- ETL listed ensuring compliance with safety standards
