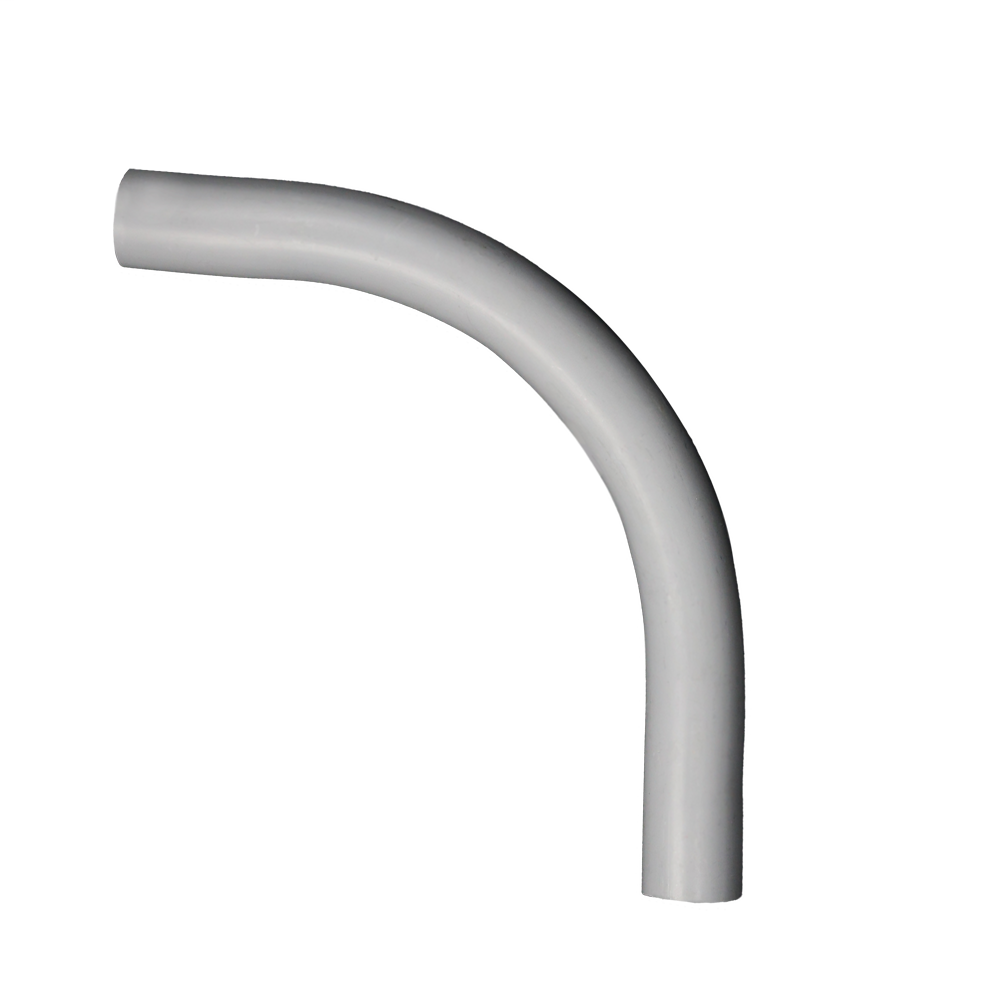

3 in. x 90-Degree Plain End Schedule 40 Standard Radius Elbow – PVC Conduit Fitting

The Cantex 3 in. x 90-Degree Plain End Schedule 40 Standard Radius Elbow is designed to change the direction of conduit runs by 90 degrees. Manufactured from rigid PVC, this fitting is suitable for electrical wire and cable installations, providing a reliable solution for routing conduit in lighting solutions and wire and cable distribution systems. It is ideal for use by electrical distributors and switchgear suppliers requiring durable conduit fittings that conform to industry standards.

Specifications

• Manufacturer: Cantex
• Manufacturer Part #: 5133830
• Material: Rigid PVC
• Size: 3 inches
• Type: 90-Degree Plain End Elbow
• Schedule: 40 Standard Radius
• Weight: 3.6560 lbs
• Carton Quantity: 14
• ETL Listed, conforms to UL651 and NEMA TC3 (see diagram on page 1 of the 90 Degree Elbows specification sheet)
• Bend Tolerance: ±2°
• Dimensions (inches) (from specification diagram): R = 13", O = 13", H = 13", S min = 3 1/8", L = 20 3/8"

Features

• Provides a 90-degree change in conduit direction for electrical wiring systems
• Constructed from durable, inert PVC material suitable for electrical conduit applications
• Compliant with NEC Article 352 for PVC conduit use
• Stable and resistant to environmental factors typical in electrical installations
• Non-toxic and inert during normal handling and use
• Compatible with primers and solvent cements for secure installation
