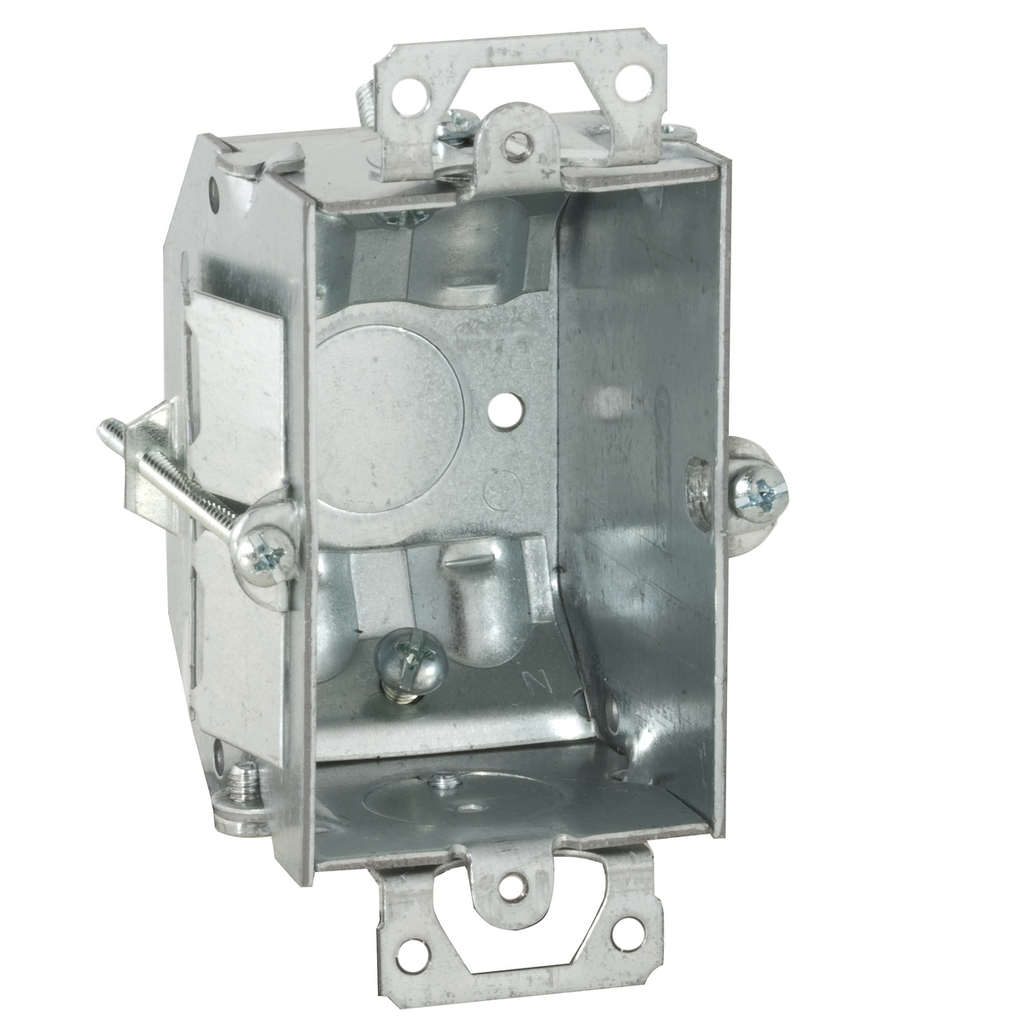

Features

• 3 in. x 2 in., 2-1/4 in. deep
• Gangable switch boxes offer the option of constructing a box to hold two or more devices
• Beveled corner boxes are designed to prevent the clamp screws from protruding into back wall
• 4 clamps designed for use with non-metallic sheathed cable
• Supplied with one 1/2 in. knockout
• Plaster ears ang Tigergrip clips for "cut-in" or "old work" applications
• 10.5 cu. in. capacity
• Acceptable for use in 2-hour fire rated walls

Specifications

• Country of Origin: Mexico
• Actual Depth: 2.557 in
• Buy American Compliant: Contact Manufacturer
• Width: 2.500 in
• Each - Width: 2.500 in
• Height: 4.24 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 10.5 cu.in
• Depth: 2.25 in
• Knockouts: 1/2 in
• Standard: UL Listed
• Type: Switch Box;Box
• Bracket Type: No Bracket
• Weight: 0.574 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: SWXBX BVLw/EARS O/W 2-1/4DP NMSC
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 20 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D015D0150
• Ends Cable: 4
• Fire Resistance: Yes
• Gangable: Yes
• Plaster Ears: No
• Power Distribution Features: Fire Rated
• Wiring System: Nonmetallic Sheathed Cable
• Material: Steel
• Number of Gang(s): 1-Gang
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 8.75x12.875x5.625 (in)
• Box Type: Wall Box
• Carton - Gross Weight per Pack: 12.1 lb.
• Carton - Number of Sub Packs: 20
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169004876
• Carton - Total Units: 20 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169004875
• Pallet - Number of Sub Packs: 126
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169004871
• Pallet - Total Units: 2520 EA
• Pallet Height: 44.875 in
• Pallet Length: 42.000 in
• Pallet Weight: 1543.140 lb.
• Pallet Width: 48.000 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
