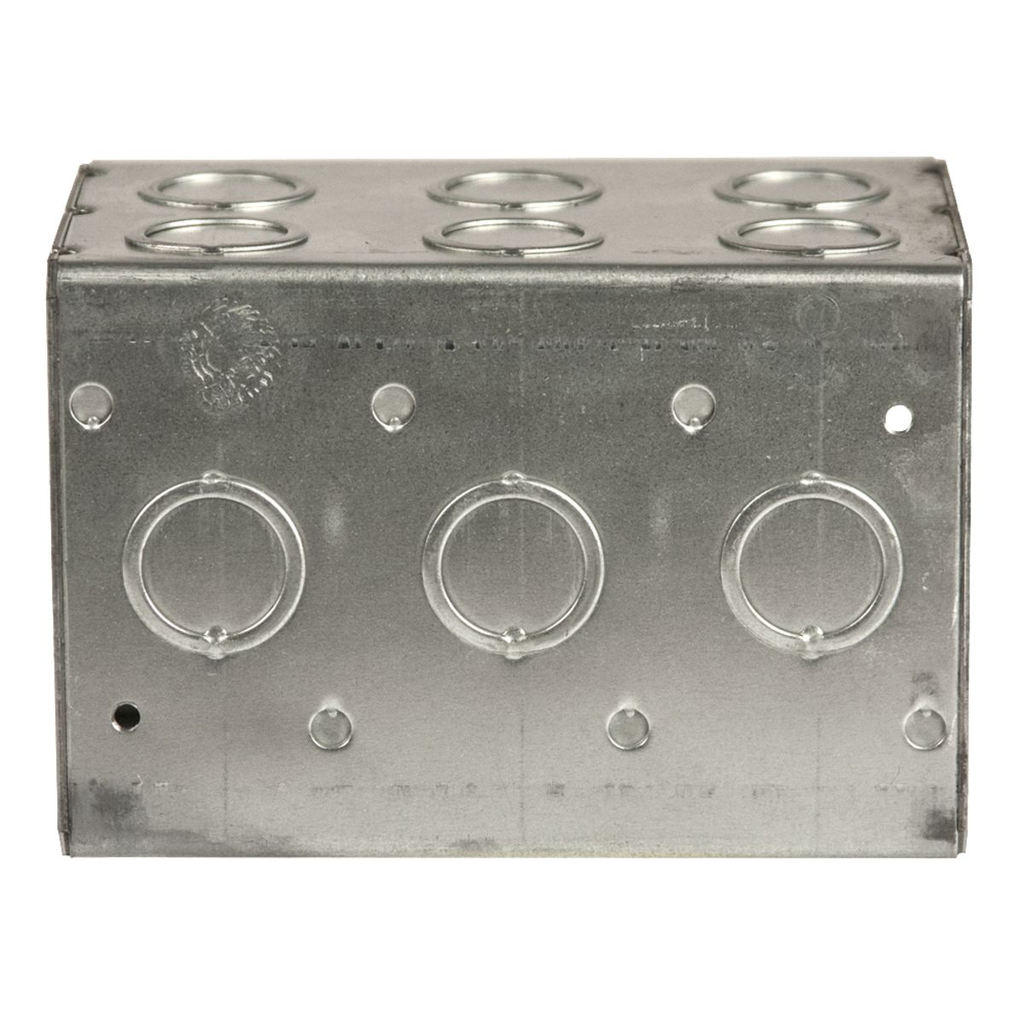

The 3-Gang Masonry Box provides secure housing for electrical junction connections in concrete, brick, or block wall installations. This nongangable steel box with 3.5 inches deep depth offers ample space for wiring and outlet devices in residential projects.

• Durable steel design with nineteen concentric knockouts for flexible conduit entry
• Depth capacity: 3.5 inches interior depth accommodates larger electrical components
• Configuration: Three-gang format supports multiple outlet device installations
• Knockout pattern: Features nineteen concentric knockouts for varied wall junction connection options
• Installation type: Specifically designed for masonry, block, and concrete wall applications

The RACO 3-Gang Masonry Box provides secure housing for electrical junction connections in brick and block wall installations. This welded metal steel box features a rugged build that maintains integrity throughout the building process, with a rectangular design specifically shaped for square block cuts.

• Capacity: 67.3 fluid ounces volume creates ample workspace for outlet and switch wiring connections and accommodates complex installations
• Build: Welded steel metal design with device ears that prevent mortar infiltration during the building process
• Access points: Nineteen pre-formed 1/2 and 3/4 inch concentric knockouts for flexible conduit connections
• Dimensions: 5.594 inches wide by 3.75 inches high by 3.5 inches deep for 6, 8, and 10 inch block walls
• Installation flexibility: Non-gangable design accommodates standard wall plates and outlet or switch device mounting

Features

• Rugged welded design does not fall apart during construction.
• Available from one to six gang configurations in both 2-1/2" and 3-1/2" depths.
• Rectangular shape fits square cuts in block.
• Large volume design allows for additional work room inside the box.
• Standard 1/2" and 3/4" concentric knockouts.
• Device ears inside the box prevent mortar from getting in the device holes.
• Steel voltage partition #971 fits all 2-1/2" or 3-1/2" depths.
• Standard wall plates can be used.
• Supplied with nineteen (19) 1/2 & 3/4 in. concentric knockouts
• Welded steel construction
• Standard device spacing with tapped 6-32 holes for devices
• 67.3 cu. in. capacity
• For 6, 8, and 10 in. block walls

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Contact Manufacturer
• ChannelSightWidgetId: 705
• Depth: 3.5 in
• Width: 5.594 in
• Each - Width: 5.594 in
• Height: 3.75 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 67.3 cu.in
• Knockouts: 1/2 - 3/4 in Concentric
• Standard: UL Listed
• Type: Box
• Bracket Type: No Bracket
• Weight: 1.6 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: MSNBX 3G 3-1/2DP 1/2&3/4CONC KO
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 10 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D017D0172
• Drawn or Welded: Welded
• Gangable: No
• Wiring System: Conduit
• Material: Steel
• Number of Gang(s): 3-Gang
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 10.75x12.5x8.75 (in)
• Box Type: Wall Box
• Carton - Gross Weight per Pack: 16 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169006979
• Carton - Total Units: 10 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169006978
• Pallet - Number of Sub Packs: 60
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169006974
• Pallet - Total Units: 600 EA
• Pallet Height: 49.250 in
• Pallet Length: 42.000 in
• Pallet Weight: 1005.000 lb.
• Pallet Width: 48.000 in
• Standard Package Quantity: 25

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
