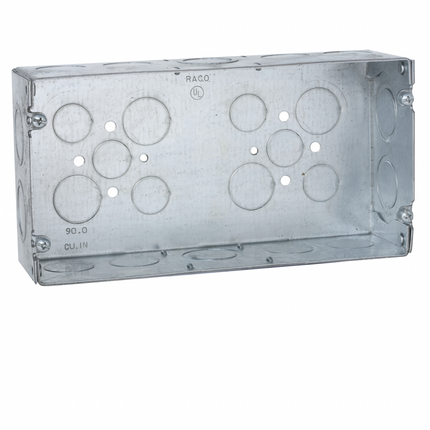

Features

• Gang boxes save time in installation, no need to gang boxes together.
• Have 3/4" and 1" concentric KO's for use with a wide variety of wiring methods.
• Bottom KO pattern, 3-1/2" and 2-3/4" at either end of box.
• Accepts two styles of covers, flat and 3/4" raised device cover.
• Use low voltage partitions #974 or #949.
• Used where multiple wiring devices are to be centrally located
• Bottom knockouts are at either end of box
• 90.0 cu. in. capacity
• Used in finish wall applications

Specifications

• Country of Origin: China
• Buy American Compliant: Contact Manufacturer
• ChannelSightWidgetId: 705
• Width: 8.625 in
• Each - Width: 8.625 in
• Height: 4.5 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 90.0 cu.in
• Depth: 2.5 in
• Knockouts: 1/2 in;3/4 in;3/4-1 in Concentric
• Standard: UL Listed
• Type: Box
• Bracket Type: No Bracket
• Weight: 1.975 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: GNGBX 3G 2-1/2DP 1/2&3/4CONC KO
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 5 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D018D0180
• Wiring System: Conduit
• Material: Steel
• Number of Gang(s): 3-Gang
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 7.75x9.25x9.5 (in)
• Box Type: Wall Box
• Carton - Gross Weight per Pack: 9.875 lb.
• Carton - Number of Sub Packs: 5
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169009420
• Carton - Total Units: 5 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169009429
• Pallet - Number of Sub Packs: 88
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169009425
• Pallet - Total Units: 440 EA
• Pallet Height: 43.500 in
• Pallet Length: 43.300 in
• Pallet Weight: 869.000 lb.
• Pallet Width: 43.300 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Yes
