3" Expansion Coupling
SKU: #193119
Part: #TXJG84HDG
UPC: 751338015111
Next day delivery
Description

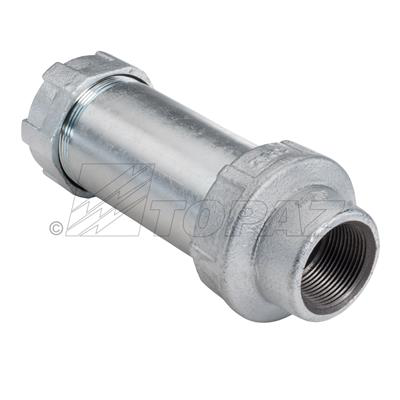

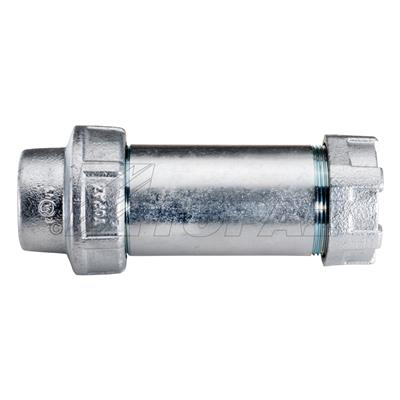

3" Expansion Coupling - Rigid Expansion Coupling
The 3" Expansion Coupling by Southwire is designed to accommodate up to 4 inches of linear movement caused by thermal expansion and contraction, making it ideal for use in outdoor structures such as bridges, railroads, and buildings. This rigid expansion coupling features a weatherproof design and an internal grounding system that eliminates the need for external bonding jumpers and cables. It is suitable for use with rigid UL 6 conduit and provides reliable protection against circuit failures caused by conduit buckling.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: TXJG84HDG
- Size: 3"
- Product Weight: 14.2 lbs
- UPC: 751338015111
- Material Body: Steel
- Reducer Material: Malleable Iron
- Packing: PTFE Composite
- Washer & Bushing Material: Malleable Iron
- Gasket: PTFE Composite
- Grounding Spring: Beryllium Bronze - Electrogalvanized
- Finish: Hot Dip Galvanized
- UL Standard: UL 514B
- Federal Specification: WF-408E
- NEMA: FB 1
- ASTM: A123/123M
Features
- Allows up to 4" linear movement (2" in either direction from center)
- Weatherproof design for outdoor use on structures prone to movement
- Internal grounding design prevents need for external bonding jumpers and cables
- Prevents conduit buckling and ensures circuit integrity
- Hot dip galvanized finish for superior environmental protection
- Listed for wet locations (c(UL)us)
- Compatible with Rigid UL 6 conduit
