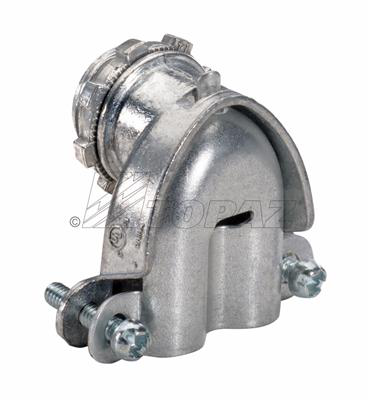

3/8" 90° BX-Flex, NM & MC Cable Duplex Connector

The 3/8" 90° BX-Flex, NM & MC Cable Duplex Connector by Southwire is designed for secure electrical connections in dry, indoor locations. It is suitable for bonding flexible metal conduit, armored cable, interlocked metal clad, NM, and SE cables to boxes or enclosures. This product is an essential component for electrical distributors and switchgear suppliers focusing on reliable wire and cable connections within lighting solutions and electrical installations.

Specifications

• Material: Zinc/Malleable Iron
• Connection: Threaded x Squeeze
• Size: 3/8"
• Knockout (KO) Size: 1/2"
• Product Weight: 0.1168 lbs
• Manufacturer: Southwire
• Manufacturer Part #: 561ADC
• UL Listed: Yes

Features

• Durable and corrosion-resistant zinc die cast or zinc-plated malleable iron construction
• Duplex 2 screw clamp for secure cable retention
• UL listed locknut and set screw type assembly
• NPT male hub providing a secure connection
• Tri-combo screw head for versatile installation
• Recommended for use in dry, interior locations

Downloads & Links

• Spec Sheet
