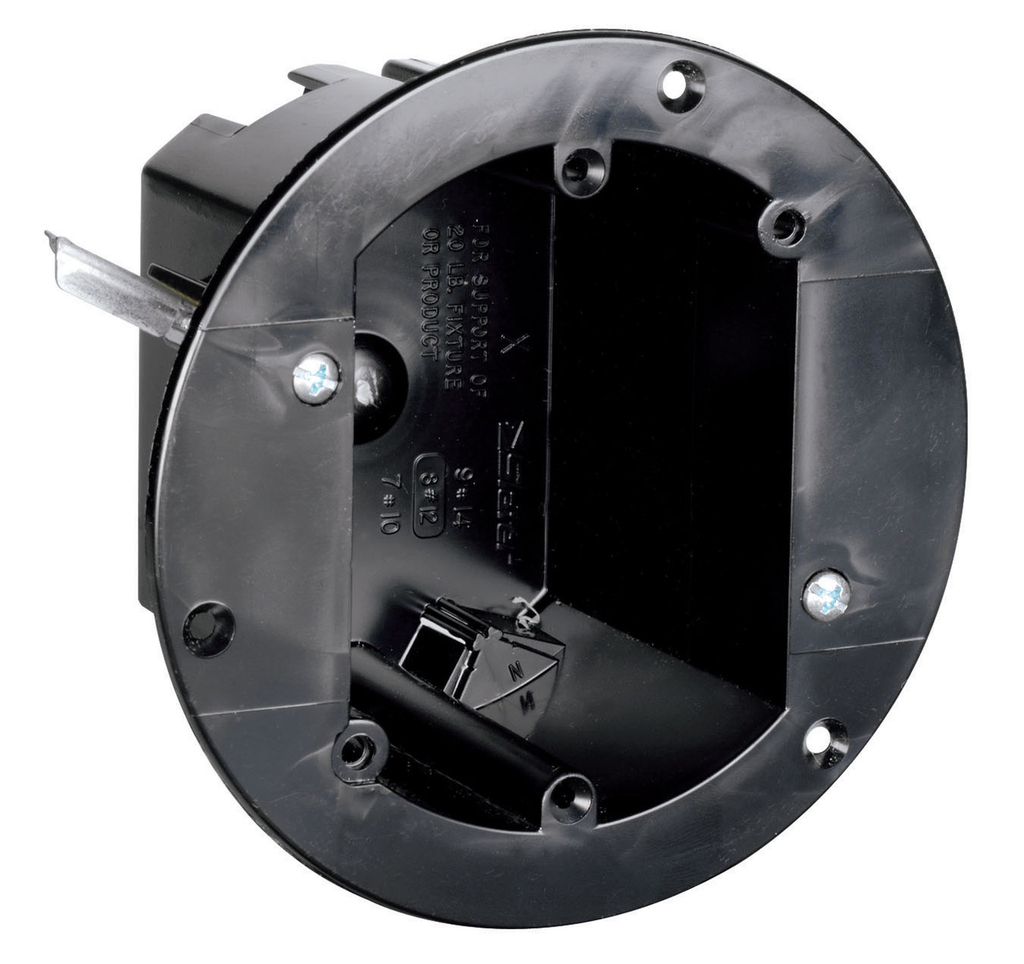

The Pass & Seymour 3.75 inches Round Old Work Box provides secure mounting for electrical devices in retrofit and remodel applications. It features a flush-fitting circular design for clean wall plate installation in existing walls and ceilings across residential settings, making it ideal for junction boxes, outlet installations, and light fixture mounting.

• Compatibility: Thermoplastic build with combination slotted/Phillips head screws and Auto/Clamp feature for secure receptacle mounting
• Installation flexibility: Swing out wing brackets accommodate wall thicknesses from 1/8 inch paneling to 1 1/4 inches wallboard
• Mounting capacity: Supports ceiling fixtures weighing up to 6 pounds
• Dimensions: Measures 3.75 x 2.25 x 2.71 inches for standard device mounting, perfect circle size for most electrical applications
• Safety compliance: UL Listed, cULus Listed, and RoHS Compliant for code requirements

Features

Certifications

• RoHS Compliant
• cULus Listed
• UL Listed

• Box designed so mounting strap of the device, with plaster ears removed, fits flush, allowing use of standard depth wall plate without unsightly gap between plate and wall surface.
• Swing out wing brackets permit installation of box in wall with 1 1/4 inch thick wallboard down to 1/8 inch thick paneling.
• New longer swing brackets have greater reach to clamp onto oversize cutouts.
• Made of high impact thermoplastic.
• Combination slotted/Phillips head swing bracket screws.
• Include exclusive Auto/Clamp feature.
• Suitable for in-wall use.
• Suitable for in-ceiling use for supporting weights up to up to 6 lbs.
• Includes device mounting holes.
• For covering patents, see www.legrand.us/patents.

Specifications

• Country of Origin: United States

Specifications

• Color: Black
• Product Line: Pass & Seymour
