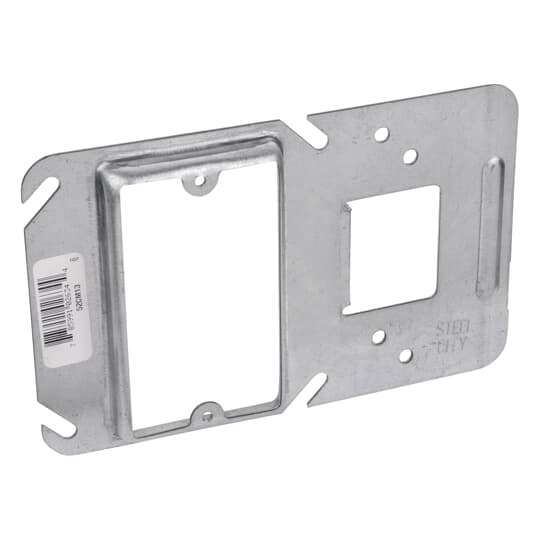

3/4IN DEEP ONE DEVICE SUPPORT COVER – Electrical Box Cover

This 3/4 inch deep one device support cover is designed for use with 4-inch square electrical boxes. Manufactured by Steel City, it serves as a single gang box support cover, providing a secure mounting solution for electrical devices. The cover combines a box-to-stud mounting bracket with a device cover in one component, suitable for both steel and wood studs. It is ideal for electrical distributors and switchgear suppliers looking for reliable lighting solutions and wire and cable management accessories.

Specifications

• Material: Steel
• Finish: Pre-galvanized
• Color: Silver
• Cubic Capacity: 5 cu in
• Dimensions: 4 inch square x 3/4 inch raised
• Number of Outlets: 1
• Knockouts: 0
• Product Weight: 11 lbs
• Standards: UL Listed (UL File #E2969)
• Manufacturer: Steel City
• Manufacturer Part Number: 52CM14

Features

• Combines cover and bracket in one component for simplified installation
• Compatible with both steel and wood studs
• Does not require far side support
• Can be used without a box as a low voltage device support
• Pre-galvanized steel construction for durability and corrosion resistance
• Single gang design suitable for one device
• Speeds installation time by reducing the number of components
