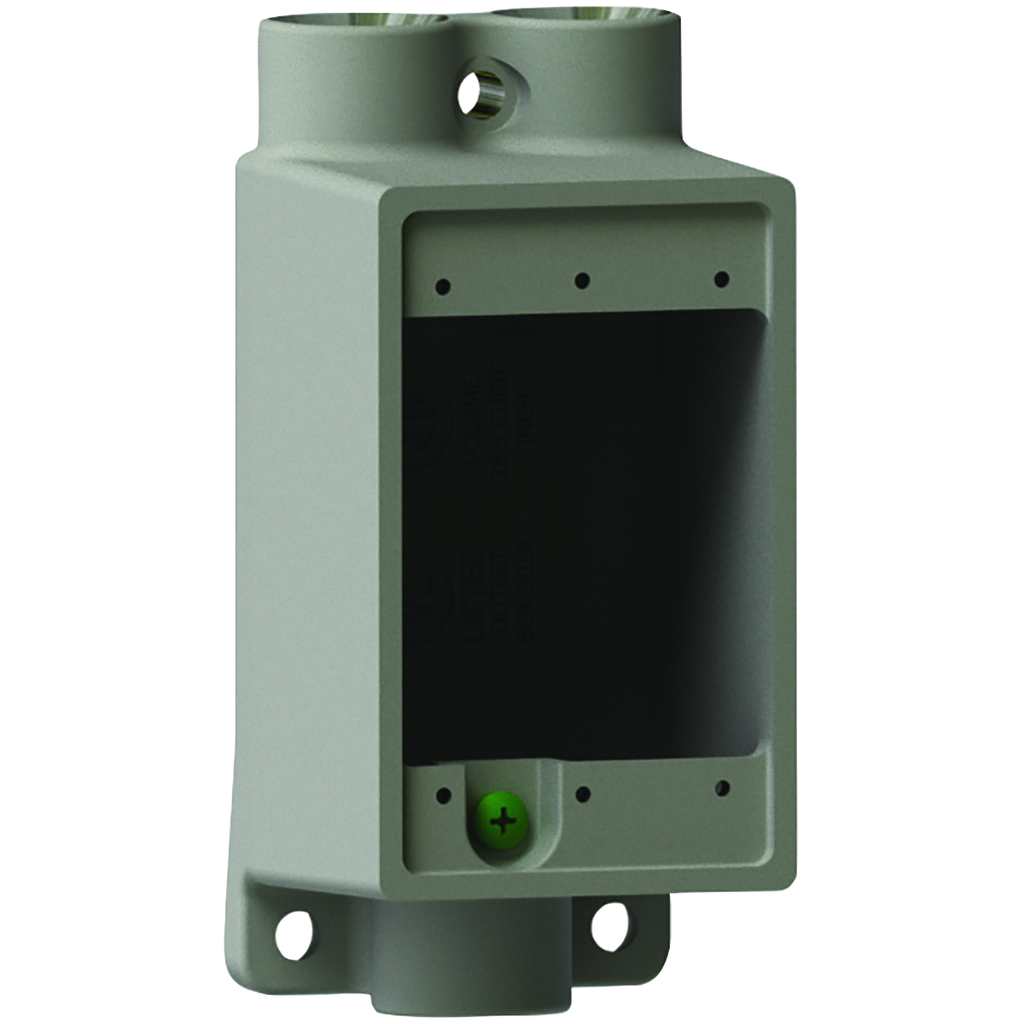

3/4" Aluminum FDCC Type Deep Device Box

The 3/4" Aluminum FDCC Type Deep Device Box is designed to accommodate wiring devices and provide openings to splice, tap, or pull conductors. It facilitates access to conductors for maintenance and future system changes, making it suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring durable device boxes for standard and hostile locations.

Specifications

• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Color: Gray
• Finish: Powder Epoxy Paint
• Hub Size: 3/4 inches
• Cable Entry: 3/4" hub
• Cubic Capacity: 28.5 cu. in.
• Width: 1.000 in
• Number of Outlet: 1
• Product Weight: 1.0 lb
• Country of Origin: United States
• Made in USA: Yes
• Manufacturer Part #: FDCC-2

Features

• Accommodates wiring devices and provides opening to splice, tap, or pull conductors
• Provides access to conductors for maintenance and future system changes
• Tapered threads (NPT with integral bushings)
• Internal grounding screw
• Suitable for use in wet locations when used with gasket covers
• Cast aluminum construction with copper-free alloy for corrosion resistance
• Electrostatically applied powder coating for durable finish
• Complies with UL Standard 514A and CSA Standard C22.2 No. 18

Downloads & Links

• Catalog Full Asset Reference
• Spec Sheet
• Sales Drawing Asset Reference
• FDCC-2 Engineering Drawing
• STEP 3D Model Asset Reference
• Customer Notices Asset Reference
