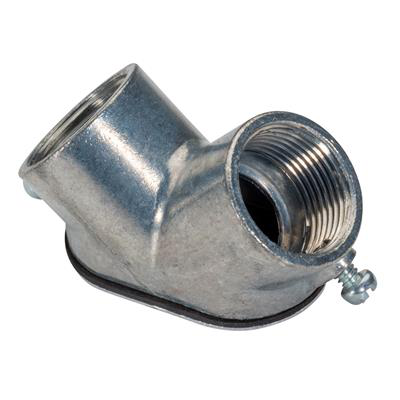

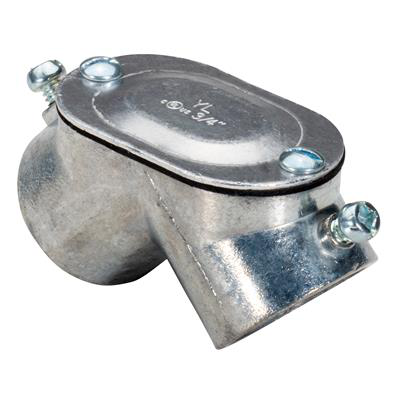

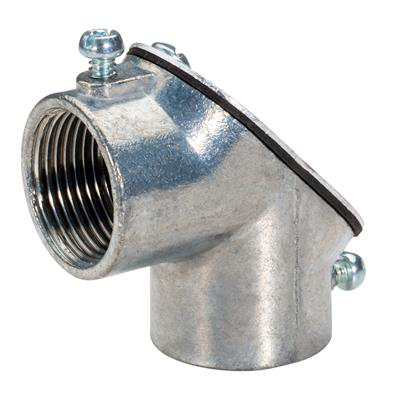

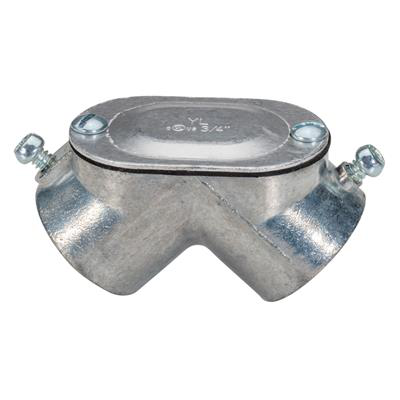

3/4" Threaded Set Screw Type Elbow - Rigid to Rigid or EMT to Rigid | 90° Pull Elbow

This 3/4" Threaded Set Screw Type Elbow is designed for use in electrical conduit systems to facilitate 90° turns, enabling easier wire pulling through sharp bends in threaded rigid or IMC conduit runs. Suitable for both indoor and outdoor applications when used with rigid conduit, it also supports EMT conduit use indoors. The elbow is constructed from corrosion-resistant die cast zinc, ensuring durability and protection against moisture and particles through a neoprene gasket and removable cover. This product is ideal for electrical distributors and lighting solutions providers requiring reliable conduit fittings for wire and cable installations.

Specifications

• Material: Die Cast Zinc
• Connection: Threaded
• Installation Type: Threaded
• Outside Diameter: 1.29 in
• Product Weight: 0.2640 lbs
• Application: Indoor, Outdoor, Use as a Wire Pulling Elbow to Facilitate Wire Pulling through a Sharp Bend in a Run of Threaded Rigid or IMC Conduit
• Flexibility: Rigid Conduit
• Manufacturer: Southwire
• Manufacturer Part #: 352SS

Features

• Rigid and EMT combo pull elbow
• Removable cover facilitates wire pulling
• Neoprene gasket protects against moisture and damaging particles
• Corrosion-resistant zinc die cast construction
• UL listed for safety and compliance

Downloads & Links

• Spec Sheet
