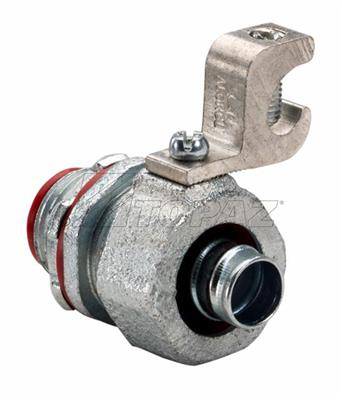

3/4" Straight Liquidtight Connector with Grounding Lug
SKU: #174607
Part: #472SGR
UPC: 751338868601
3/4" Straight Liquidtight Connector with Grounding Lug
SKU: #174607
Part: #472SGR
UPC: 751338868601
Total Price: $6.05 per each Sold in increments of 1 each
Next day delivery
Description
3/4" Straight Liquidtight Connector with Grounding Lug – Liquidtight Connector
This 3/4" Straight Liquidtight Connector with Grounding Lug by Southwire is designed to provide a secure, liquidtight connection for liquidtight conduit systems. It also serves to terminate an external bonding conductor running parallel to the conduit, meeting the requirements of NEC codes for hazardous and wet locations. Suitable for electrical distributors and lighting solutions providers, this connector ensures reliable grounding and protection against conductor abrasion.
Specifications
- Conduit Size: 3/4"
- Material: Malleable iron with steel locknut and aluminum grounding lug
- Finish: Zinc plated
- UL Ratings: Suitable for hazardous locations under NEC 501-4(b), 502-4(a), (2)503-3(a) Class 1 Div. 2, Class II Div. 1 and 2, Class III Div. 1
- Weight: 0.2860 lbs
- UPC: 751338868601
- Manufacturer Part #: 472SGR
Features
- Liquidtight design ensures durable sealing for conduit connections
- Lay-in grounding lug for secure bonding conductor termination
- Insulated throat protects conductors from abrasion damage
- Zinc electroplated finish provides corrosion resistance and durability
- Complies with NEC grounding and hazardous location standards
