3/4" Steel Set Screw Type Connector
SKU: #177233
Part: #632S
UPC: 751338230101
3/4" Steel Set Screw Type Connector
SKU: #177233
Part: #632S
UPC: 751338230101
Total Price: $0.56 per each Sold in increments of 1 each
Next day delivery
Description

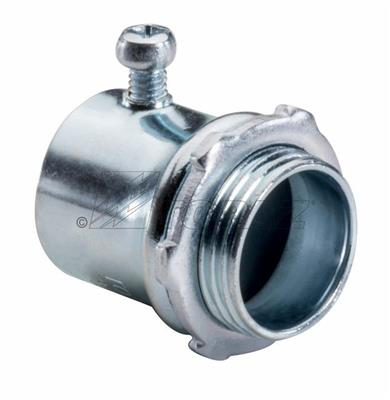

3/4" Steel Set Screw Type Connector for EMT Conduit
The 3/4" Steel Set Screw Type Connector by Southwire is designed for secure and concrete-tight connections of EMT conduit to electrical boxes or enclosures. This connector is suitable for use in dry locations and provides reliable bonding for EMT thin wall conduits. It is a key component for electrical distributors and switchgear suppliers focused on wire and cable management and lighting solutions.
Specifications
- Application: For EMT Conduit
- Material: Steel
- Finish: Zinc Plated
- Connection: Threaded x Set Screw
- Insulation: Bare
- Product Weight: 0.1400 lbs
- Manufacturer: Southwire
- Manufacturer Part #: 632S
Features
- Set screw type connector ensures secure assembly
- Concrete tight protection when taped
- Includes steel locknut for firm installation
- Constructed of strong, long-lasting steel with zinc plated finish
- UL listed for most sizes
- NEMA/ANSI FB-1 compliant
