3/4" Steel Compression Type Coupling - EMT to Liquidtight

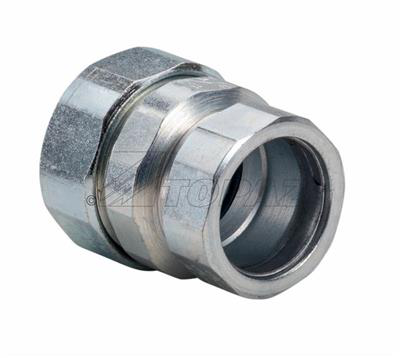

This steel compression type coupling is designed to securely connect liquidtight (LT) conduit to EMT conduit, suitable for sizes 1/2 inch through 1 inch. It is ideal for rooftop HVAC air conditioning systems and motor hook-ups, providing mechanical protection and reliable connectivity. The coupling features a reusable ferrule and zinc-plated finish for corrosion resistance, making it suitable for indoor EMT applications. This product is UL listed and manufactured by Southwire.

Specifications

• Material: Steel
• Connection: Compression
• Installation Type: Compression
• Outside Diameter: 1.72 in
• Length: 1.75 in
• Product Weight: 0.0700 lbs
• Manufacturer Part #: 272
• UPC: 751338122703

Features

• Liquidtight, raintight, oiltight sealing
• Compression type connection
• Compatible with EMT and liquidtight conduits
• Reusable ferrule for easy installation and maintenance
• Zinc plated finish for corrosion resistance
• UL listed for safety and compliance

Downloads & Links

• Spec Sheet
