3/4" Schedule 40 PVC LL Type Conduit Bodies
SKU: #168966
Part: #1152
UPC: 751338232112
3/4" Schedule 40 PVC LL Type Conduit Bodies
SKU: #168966
Part: #1152
UPC: 751338232112
Total Price: $6.71 per each Sold in increments of 1 each
Description
3/4" Schedule 40 PVC LL Type Conduit Bodies – Electrical Conduit Fittings

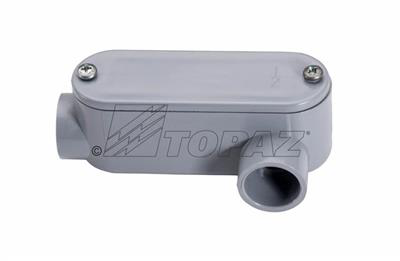

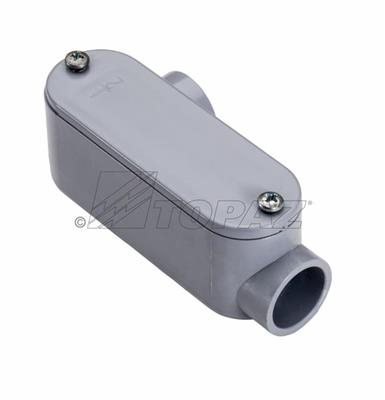

The 3/4" Schedule 40 PVC LL Type Conduit Bodies by Southwire provide a 90° left bend solution for conduit systems, allowing easy access for splicing and enabling directional changes in wire and cable runs. Designed for use in electrical distribution and lighting solutions, these conduit bodies are lightweight, noncorrosive, and nonconductive, facilitating installation in confined spaces. They are UL approved and suitable for professional electrical distributors and switchgear suppliers requiring reliable conduit fittings.
Specifications
- Material: PVC
- Size: 3/4"
- Weight: 0.2667 lb
- Manufacturer Part #: 1152
- Dimensions (inches): A - 4.625, B - 1.625, C - 1.50, D - 4.9375
- UPC: 751338232112
Features
- Rectangular shaped conduit body with removable cover secured by zinc plated screws
- Contains two conduit hubs: one on the end wall and one on the left side wall for 90° conduit bends
- Lightweight, noncorrosive, and nonconductive PVC construction for easy installation
- UL approved for electrical safety compliance
