3/4 INCH R/G PVC CORR ORG EMPTY
SKU: #15222
Part: #DE4X1-1000
UPC: 791207203584
3/4 INCH R/G PVC CORR ORG EMPTY
SKU: #15222
Part: #DE4X1-1000
UPC: 791207203584
Next day delivery
Description

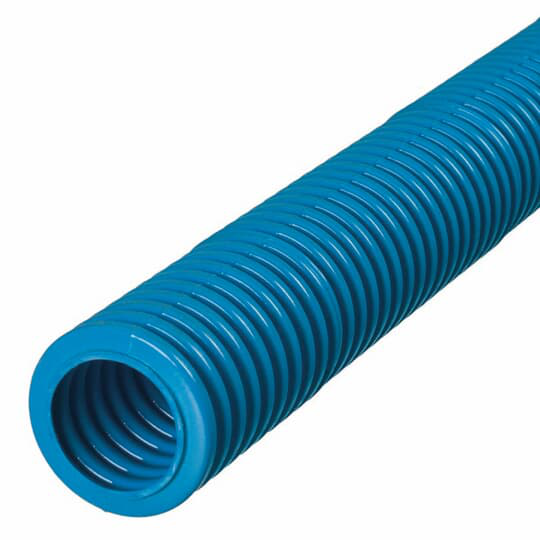

3/4 INCH R/G PVC CORR ORG EMPTY - Riser-Gard Flexible Raceway
The 3/4 INCH R/G PVC CORR ORG EMPTY is a corrugated flexible raceway designed for fiber optic and communications cable protection. Manufactured by Carlon, this non-metallic conduit is suitable for use in vertical riser applications, general purpose areas, and other spaces outside of the plenum. It is UL® Listed to UL 2024 standard, complying with NEC® Articles 725, 770, 800, and 820 for riser and telecommunications cabling. This conduit is commonly used by electrical distributors and switchgear suppliers as part of wire and cable management and lighting solutions infrastructure.
Specifications
- Nominal Size: 3/4 inch
- Material: PVC
- Color: Orange
- Length: 1000 ft
- Outside Diameter: 1.05 in
- Inside Diameter: 0.74 in
- Wall Thickness: 0.060 in
- Product Weight: 0.1500 lbs per ft
- UL Listing: UL 2024 (UL e151168)
- Country of Origin: United States
Features
- Non-metallic flexible conduit for riser and general purpose applications
- Suitable for vertical runs in shafts or between floors
- Available with factory pre-installed pull tape
- Meets UL 2024 standard for riser and optical fiber/communications raceways
- Outside diameters meet IPS dimensions
- Sequential footage marking for easy measurement
- Storage temperature range: -4°F to 158°F
- Handling temperature range: -4°F to 104°F
- No UV protection; not suitable for outdoor or exposed applications
