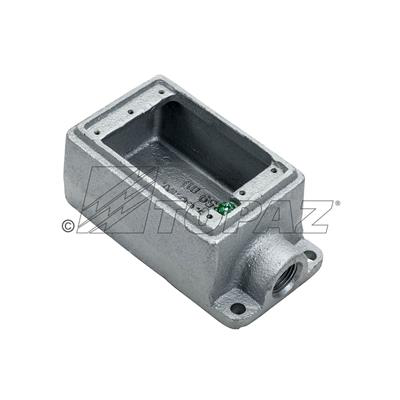

3/4" FD BOX DEEP SINGLE HUB HDG-10PK Cast Device Box

The 3/4" FD BOX DEEP SINGLE HUB HDG-10PK is a heavy-duty cast device single gang box designed for electrical distributors and lighting solutions requiring durable and reliable wire and cable management. Manufactured by Southwire, this box is suitable for use in harsh locations, providing a secure opening for making splices, serving as a pull box for conductors, and allowing connection for branch conduit runs. It is constructed from malleable iron with a hot dip galvanized finish, making it appropriate for wet locations when used with the specified cover and neoprene gasket.

Specifications

• Manufacturer Part #: FD2MHDG
• Size: 3/4"
• Material: Malleable iron
• Finish: Hot dip galvanized
• Dimensions (inches): A - 6.09, B - 2.97, C - 2.90
• Product Weight: 2.9 lbs
• UPC: 751338018068

Features

• Tapered threaded hubs - NPT
• Internal grounding screw
• Suitable for use in concrete
• Suitable for wet locations when used with cover and neoprene gasket (FSFDCG)
• Provides opening for making splices
• Serves as a pull box for conductors
• Allows connection for branch conduit runs

Downloads & Links

• Spec Sheet
