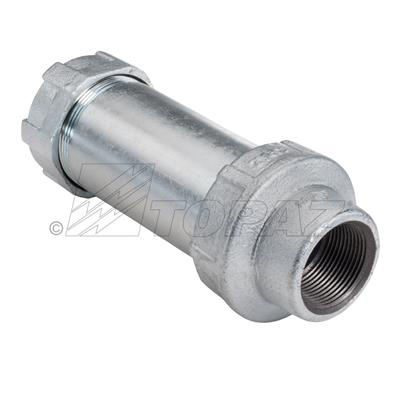

3/4" Expansion Coupling
SKU: #193085
Part: #TXJG24HDG
UPC: 751338015050
3/4" Expansion Coupling
SKU: #193085
Part: #TXJG24HDG
UPC: 751338015050
Next day delivery
Description

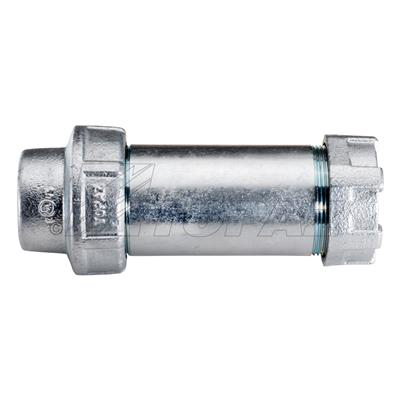

3/4" Expansion Coupling – Rigid Expansion Couplings
The 3/4" Expansion Coupling by Southwire is designed to accommodate up to 4 inches of linear movement caused by thermal expansion and contraction in rigid conduit systems. This product is ideal for electrical distributors and switchgear suppliers requiring reliable conduit connections that prevent buckling and circuit failures. Its weatherproof design and hot-dip galvanized finish make it suitable for outdoor structures prone to movement, such as bridges, railroads, and buildings.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: TXJG24HDG
- Size: 3/4"
- Product Weight: 1.85 lbs
- UPC: 751338015050
- Material: Steel body with malleable iron reducer, washer, and bushing
- Finish: Hot dip galvanized
- Conduit Compatibility: Rigid UL 6 Conduit
- Movement Capacity: Up to 4" linear movement (2" in either direction on center)
- Standards: UL 514B, Fed. Spec WF-408E, NEMA FB 1, ASTM A123/123M
Features
- c(UL)us listed for wet locations
- Internal grounding design eliminates need for external bonding jumpers and cables
- Prevents conduit buckling and circuit failures
- Weatherproof design suitable for outdoor use on structures subject to movement
- Hot dip galvanized finish provides superior protection against severe environmental factors
- Includes PTFE composite packing and gasket for sealing
- Grounding spring made of beryllium bronze, electrogalvanized
