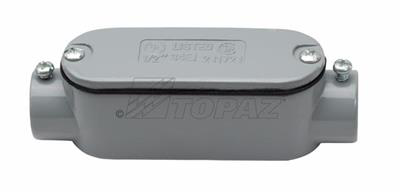

3/4" EMT Set Screw C Type Conduit Body, Cover & Gasket
SKU: #184381
Part: #EC2CG
UPC: 751338204218
3/4" EMT Set Screw C Type Conduit Body, Cover & Gasket
SKU: #184381
Part: #EC2CG
UPC: 751338204218
Next day delivery
Description
3/4" EMT Set Screw C Type Conduit Body, Cover & Gasket – Electrical Conduit Accessory
This 3/4" EMT Set Screw C Type Conduit Body by Southwire is designed to provide access to conductors for pulling, splicing, and maintenance. Suitable for use in concrete installations, it offers a durable and corrosion-resistant solution ideal for electrical distributors and lighting solutions requiring reliable wire and cable management. The conduit body features a straight-through configuration with a domed cover and gasket to ensure protection and ease of wiring access.
Specifications
- Manufacturer: Southwire
- Manufacturer Part #: EC2CG
- Material: Die Cast Aluminum
- Form: C
- Hub Size: 3/4"
- Dimensions: Length 5.57 in, Height 1.625 in, Width 1.54 in
- Product Weight: 0.4200 lbs
- Mounting: Wall Mount
- UL Listed: UL Standard 514A
Features
- Set screw C type with cover and gasket
- Suitable for use in concrete
- Copper-free aluminum die cast construction for corrosion resistance
- Domed cover provides extra wiring space
- Roomy interior allows maximum wiring space
- Smooth, rounded integral bushings protect conductor insulation
- Excellent ground continuity
- Steel screws, stamped steel cover, and neoprene rubber gasket
- Powder coat finish for durability
