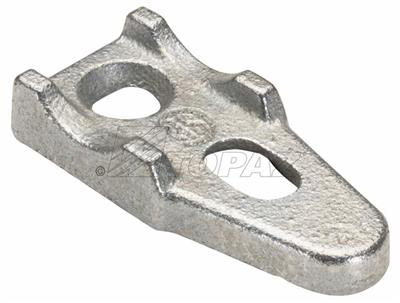

3/4" Clampback – EMT/Rigid Conduit Fitting

The 3/4" Clampback by Southwire is designed to provide optimal spacing between mounting surfaces for rigid, IMC, and EMT conduit runs. Suitable for both indoor and outdoor applications, this clampback is fabricated from high-grade malleable iron with a zinc-plated finish to ensure durability and corrosion resistance. It is UL listed and backed by Topaz’s lifetime guarantee, making it a reliable component for electrical distributors and lighting solutions providers working with wire and cable installations or switchgear supply.

Specifications

• Material: Malleable Iron
• Finish: Zinc Plated
• Application: Indoors, Outdoors
• Product Weight: 0.1056 lbs
• Manufacturer: Southwire
• Manufacturer Part #: 482
• UPC: 751338145207
• Size: 3/4"
• Dimensions (inches): A - 2.38, B - 1.06, C - 0.50

Features

• Provides optimal spacing between mounting surface and conduit
• Suitable for rigid, IMC, and EMT conduit runs
• Rugged construction with high-grade malleable iron
• Zinc plated finish for corrosion resistance
• UL listed for safety and compliance
• Backed by Topaz lifetime guarantee
• Available in extensive size range (1/2" to 6")
