3/4" Box Spacing Connector with Twin Locknuts – Electrical Connector

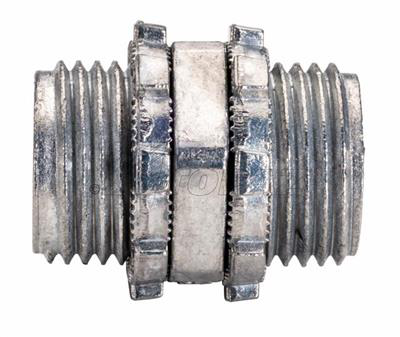

The 3/4" Box Spacing Connector with Twin Locknuts by Southwire is designed for connecting junction boxes (j-boxes) back to back in open wall spaces or through short raceways via conduit knockout openings. This connector provides a secure and reliable connection in electrical installations, suitable for electrical distributors and lighting solutions requiring precise box spacing. Its robust zinc die cast construction ensures durability in wire and cable management applications and supports use by switchgear suppliers.

Specifications

• Manufacturer Part #: 141A
• Material: Die Cast Zinc
• Size: 3/4"
• Weight: 0.0970 lbs
• Dimensions: Length (A) 1.12 inches, Diameter (B) 0.95 inches
• UPC: 751338109322

Features

• Back to back connector eliminates need for additional conduit runs
• Designed for use in short raceways to connect j-boxes through conduit knockout openings
• Fabricated in rugged zinc die cast for durability
• Includes twin locknuts for secure fastening

Downloads & Links

• Spec Sheet
