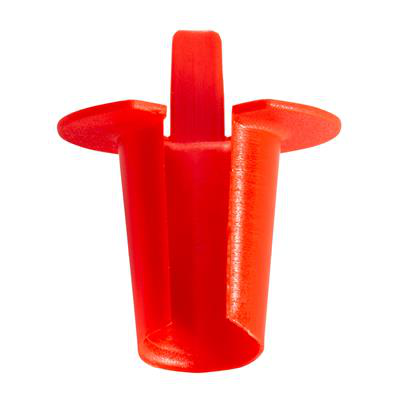

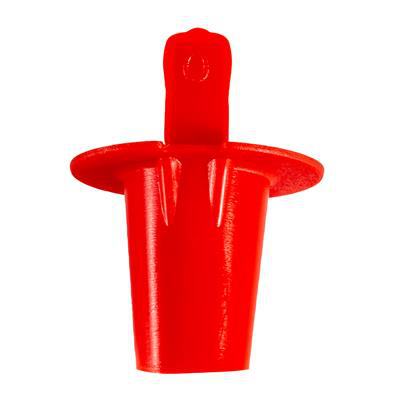

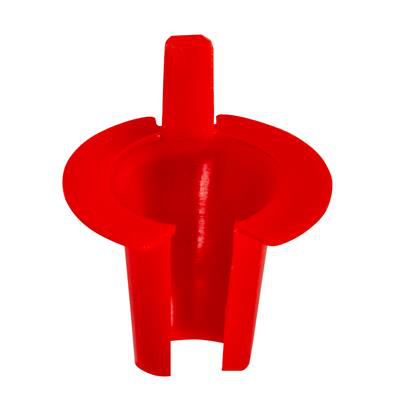

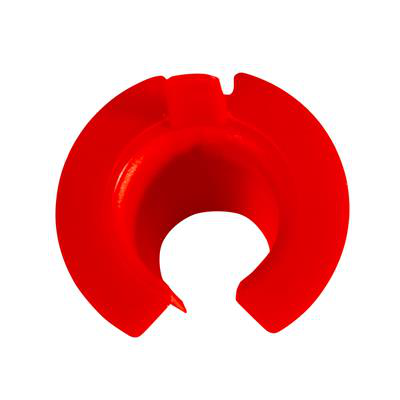

3/4" Anti-Short Bushings 1000/Case – Electrical Safety Component

The 3/4" Anti-Short Bushings by Southwire are designed to protect electrical wiring passing through the edges of flexible metal conduit, preventing damage from sharp edges that can cause short circuits and rework. These bushings are suitable for use by electrical distributors and switchgear suppliers as part of lighting solutions and wire and cable installations. The product is UL Listed and intended for indoor use, promoting safety and compliance in electrical systems.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: 4B
• Material: Plastic (Polyethylene)
• Size: 3/4"
• Quantity: 1000 per case
• Product Weight: 0.0030 lbs each
• UPC: 751338100459
• UL Listed: Yes (E148715)
• Dimensions: A = 1.34 inches, B = 0.88 inches

Features

• Protects wires from damage caused by sharp conduit edges
• Promotes electrical safety by preventing short circuits
• Plastic construction with polyethylene material for durability
• Pre-packaged in bulk for efficient distribution
• Includes pull tab for easy installation
• Suitable for cable ranges 14/2, 14/3, and 12/2
• Intended for indoor use only
• Backed by Topaz lifetime guarantee

Downloads & Links

• Spec Sheet
