3/4" 45° Liquidtight Connector with Insulated Throat
SKU: #172082
Part: #232S
UPC: 751338119802
3/4" 45° Liquidtight Connector with Insulated Throat
SKU: #172082
Part: #232S
UPC: 751338119802
Total Price: $5.85 per each Sold in increments of 1 each
Next day delivery
Description

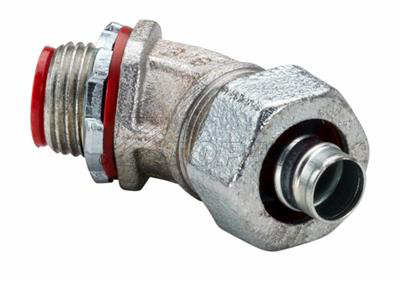

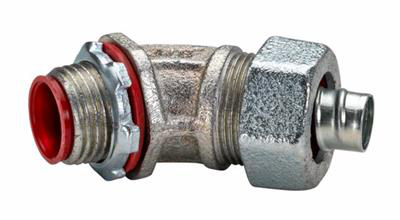

3/4" 45° Liquidtight Connector with Insulated Throat – Liquidtight Conduit Fitting
The 3/4" 45° Liquidtight Connector with Insulated Throat by Southwire is designed to provide a secure, liquidtight connection for liquidtight conduit systems. Ideal for use in hazardous and wet locations, this connector ensures protection against conductor abrasion and supports grounding requirements. It is suited for electrical distributors and switchgear suppliers who require durable, reliable fittings for wire and cable installations in demanding environments.
Specifications
- Material: Malleable Iron
- Connection: Threaded
- Insulation: Insulated Throat
- Environmental Conditions: Hazardous and Wet Locations
- Product Weight: 0.3310 lbs
- Manufacturer Part #: 232S
Features
- Liquidtight, raintight, and oiltight design
- Insulated throat protects conductors from abrasion damage
- Tapered threaded male hub NPT for secure connection
- Zinc plated finish for enhanced durability
- Compact slim diameter with small turning radius
- UL listed for hazardous locations including NEC 501-4(b), 502-4(a)(2), Class I Div. 2, Class II Div. 1 and 2, and Class III Div. 1 and 2
