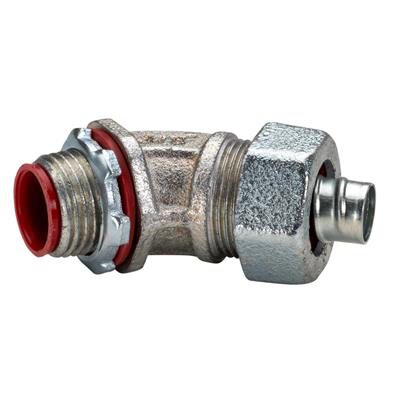

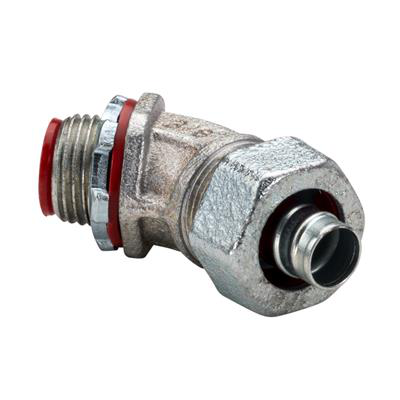

3/4" 45° Liquidtight Connector, HDG, with Insulated Throat – Liquidtight Connector

Topaz’s 3/4" 45° Liquidtight Connector is designed to secure, ground, and seal liquidtight flexible metal conduit to boxes or enclosures. Manufactured from malleable iron with a hot dip galvanized finish, this connector features an insulated throat to protect conductors from abrasion damage. It is suitable for wet locations and hazardous environments, meeting UL listing requirements and NEC standards for grounding and hazardous location use. Ideal for electrical distributors and switchgear suppliers requiring reliable conduit fittings for wire and cable installations in lighting solutions and industrial applications.

Specifications

• Conduit Size: 3/4"
• Material: Malleable Iron
• Finish: Hot Dip Galvanized
• Weight: 0.35 lbs
• Includes: Steel Locknut
• UL Listed: Yes (E148716)
• Dimensions (inches): A - 1.61, B - 1.73, C - 2.70
• Manufacturer Part #: 232HDG

Features

• Hot dip galvanized finish for corrosion resistance
• Liquidtight, raintight, and oiltight sealing
• Insulated throat to protect conductors from abrasion
• Tapered threaded male hub NPT for secure installation
• Compact slim diameter with small turning radius for tight spaces
• Suitable for wet locations and hazardous environments under NEC 501-4(b), 502-4(a), (2)503-3(a)
• Suitable for grounding in sizes 3/8" through 1-1/2" under NEC 351-I

Downloads & Links

• Spec Sheet
