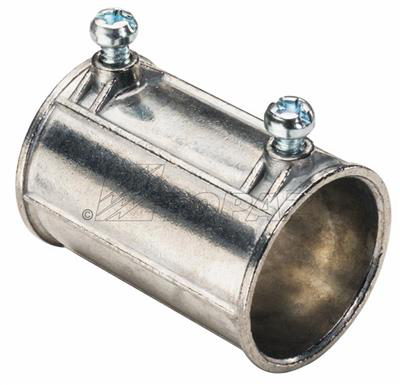

3-1/2" Zinc Die Cast Set Screw Type Coupling
SKU: #178317
Part: #649
UPC: 751338165700
3-1/2" Zinc Die Cast Set Screw Type Coupling
SKU: #178317
Part: #649
UPC: 751338165700
Next day delivery
Description
3-1/2" Zinc Die Cast Set Screw Type Coupling – EMT Conduit Connector
This 3-1/2" Zinc Die Cast Set Screw Type Coupling is designed for securely joining two lengths of Electrical Metallic Tubing (EMT). It provides concrete-tight protection when taped and is suitable for use in electrical distribution and lighting solutions requiring reliable conduit connections. Manufactured by Southwire, this coupling is constructed from corrosion-resistant die cast zinc, ensuring durability and compliance with UL Standard 514B and NEMA/ANSI FB-1 requirements.
Specifications
- Material: Die Cast Zinc
- Connection: Set Screw
- Installation Type: Set Screw
- Length: 4.85 in
- Outside Diameter: 4.52 in
- Product Weight: 1.1150 lbs
- Application: Used to Join Two Lengths of EMT
- Manufacturer Part #: 649
Features
- Set screw type assembly ensures secure connection
- Concrete tight when taped for reliable protection
- Corrosion resistant zinc die cast construction
- Easy to secure with a slotted head screwdriver
- UL listed and NEMA/ANSI FB-1 compliant
