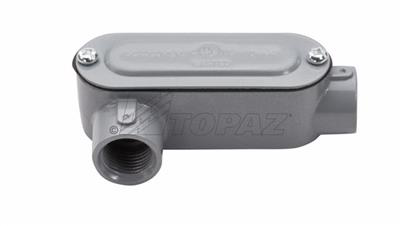

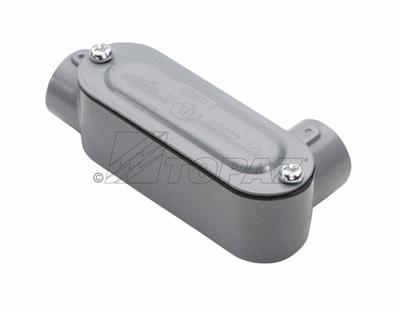

3-1/2" Threaded LR Type Rigid Conduit Body with Cover & Gasket
SKU: #190574
Part: #LR9CG
UPC: 751338213210
3-1/2" Threaded LR Type Rigid Conduit Body with Cover & Gasket
SKU: #190574
Part: #LR9CG
UPC: 751338213210
Next day delivery
Description
3-1/2" Threaded LR Type Rigid Conduit Body with Cover & Gasket – Electrical Conduit Accessory
This 3-1/2" Threaded LR Type Rigid Conduit Body provides access to conductors for pulling, splicing, and maintenance. It is designed for use in concrete and wet locations, making it suitable for demanding electrical distribution and lighting solutions applications. The conduit body facilitates wiring installation and maintenance in rigid conduit systems.
Specifications
- Hub Size: 3-1/2"
- Material: Die Cast Aluminum
- Mounting: Wall Mount
- Length: 15.5 in
- Width: 6.171 in
- Height: 5.452 in
- Product Weight: 7.2570 lbs
- Form: LR
- Manufacturer: Southwire
- Manufacturer Part #: LR9CG
- Application: Provides access to conductors for pulling, splicing, and maintenance; suitable for use in concrete and wet locations
Features
- Threaded LR type with cover and gasket
- NPT tapered hubs for secure conduit connection
- Suitable for use in concrete installations
- Designed for wet location applications
- Cover made of stamped steel
- Gasket constructed from neoprene rubber for sealing
- Powder coat finish for corrosion resistance
- Copper-free aluminum die cast body for durability
