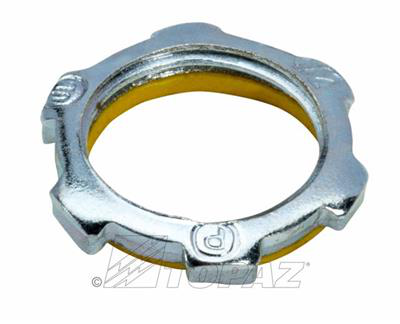

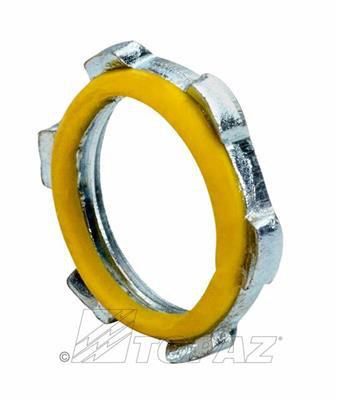

3-1/2" Sealing Locknuts for Electrical Conduit Connections

Topaz 3-1/2" Sealing Locknuts provide secure attachment of conduits or connectors to electrical junction boxes or enclosures, ensuring moisture-proof protection in wet locations. Designed for use by electrical distributors and switchgear suppliers, these locknuts are suitable for securing rigid and IMC conduit fittings in both indoor and outdoor applications.

Specifications

• Manufacturer: Southwire
• Manufacturer Part #: 719
• Material of Construction: Steel
• Finish: Zinc Plated
• Height: 0.32 IN
• Product Weight: 0.2000 lbs
• Size: 3-1/2"
• Thread Pitch Diameter: 3.892 - 3.904 inches
• UPC: 751338175303
• UL Listed: UL 514B

Features

• Zinc plated steel construction for corrosion resistance
• PVC molded gasket provides a watertight seal
• Suitable for securing rigid and IMC conduit or threaded fittings to steel outlet boxes or metal enclosures
• Designed for use in wet locations requiring moisture-proof protection
• Complies with UL Standard 514B, Federal Specifications W-F-406E and W-F-406D, and NEMA FB 1-2014
