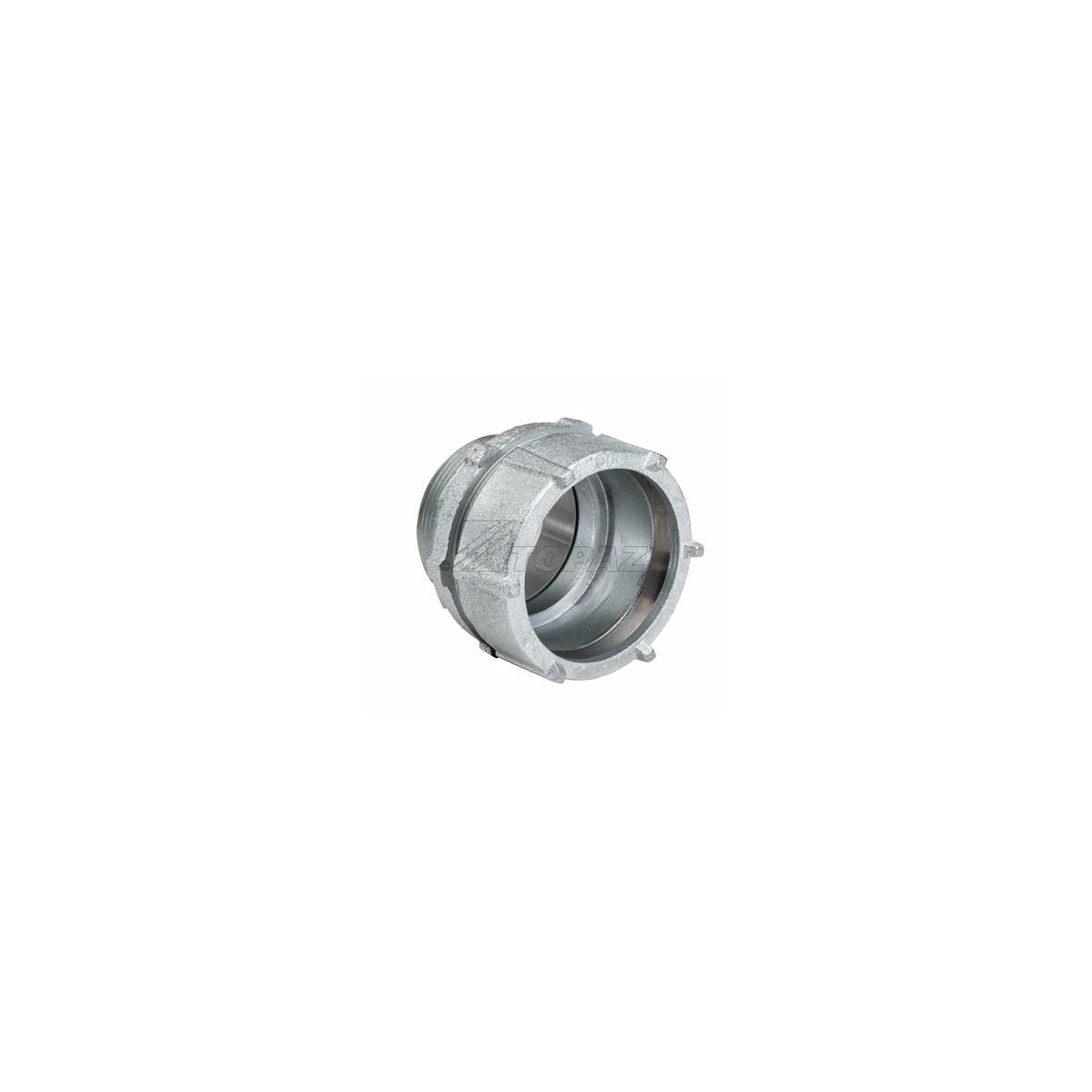

3-1/2" Rigid Connectors Compression Type With Insulated Throat - Malleable Iron

This 3-1/2" rigid connector is designed for use by electrical distributors and switchgear suppliers to securely join unthreaded rigid or IMC conduit to steel outlet boxes or metal enclosures. Constructed from malleable iron with a zinc-plated finish, it provides durable mechanical protection and reliable performance in demanding electrical wiring installations. The compression-type assembly ensures a threadless, raintight, and concrete-tight connection, while the insulated throat prevents abrasion damage to wiring.

Specifications

• Material: Steel
• Connection: Male Threaded x Compression
• Product Weight: 3.9750 lbs
• Trade Size: 3-1/2"
• UL Listed

Features

• Compression type connector
• Insulated throat to prevent abrasion
• Threadless design
• Concrete tight and raintight
• Malleable iron construction for mechanical protection

Downloads & Links

• Spec Sheet
