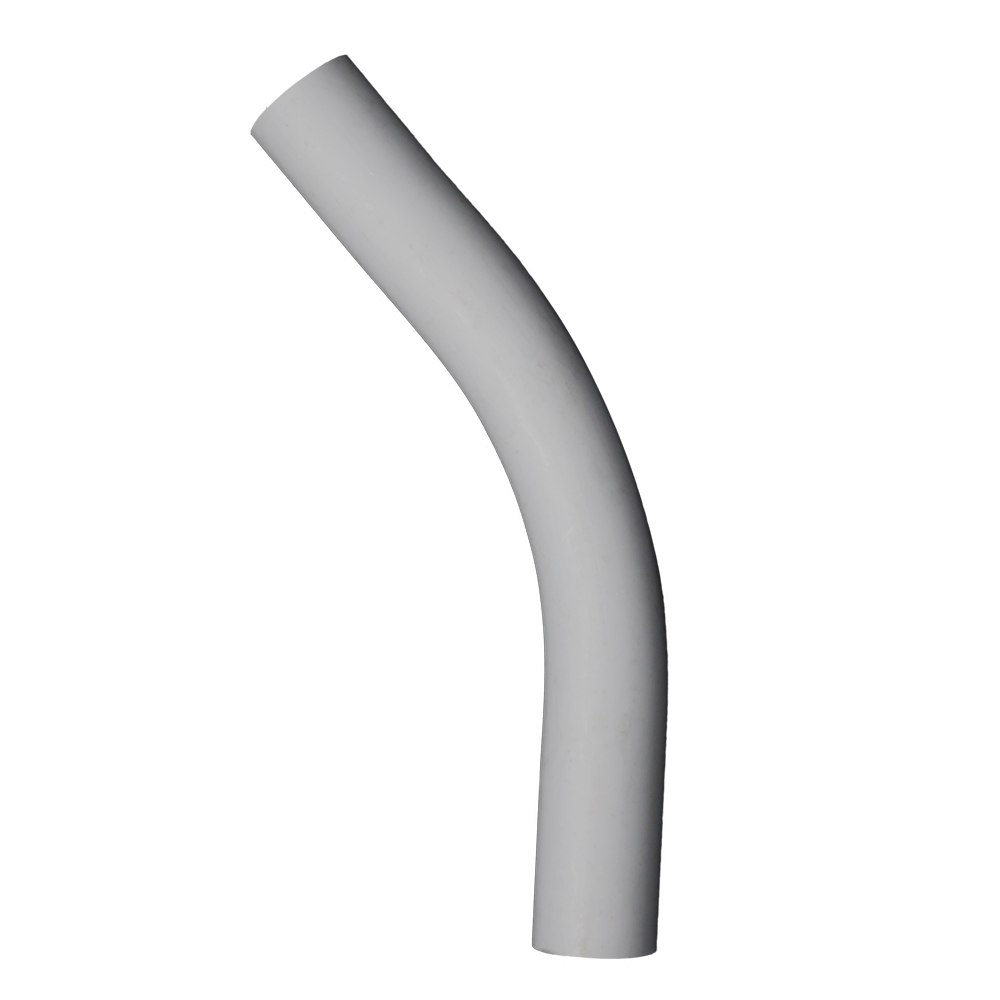

3-1/2 in. x 45-Degree Plain End Schedule 40 Standard Radius Elbow
SKU: #153845
Part: #5133771
UPC: 088700518308
3-1/2 in. x 45-Degree Plain End Schedule 40 Standard Radius Elbow
SKU: #153845
Part: #5133771
UPC: 088700518308
Next day delivery
Description
3-1/2 in. x 45-Degree Plain End Schedule 40 Standard Radius Elbow – Electrical Conduit Fitting
The CANTEX 5133771 is a 3-1/2 inch by 45-degree plain end Schedule 40 standard radius elbow designed to change the direction of conduit runs by 45 degrees. This fitting is suitable for use in electrical distribution systems, providing reliable conduit bending for wire and cable installations. It is manufactured from rigid PVC, making it compatible with electrical wire and cable conduit systems and suitable for use by electrical distributors and switchgear suppliers.
Specifications
- Manufacturer: Cantex
- Manufacturer Part #: 5133771
- Size: 3-1/2 inch
- Bend Angle: 45 degrees
- Material: Rigid PVC
- Schedule: 40
- Weight: 3.2760 lbs
- Carton Quantity: 5
- Radius ("R"): 15 inches
- Height ("H"): 10 5/8 inches
- Offset ("O"): 4 3/8 inches
- Minimum "S" dimension: 3 1/4 inches
- Minimum "L" dimension: 11 7/8 inches
- ETL Listed, conforms to UL651 and NEMA TC3
Features
- Standard radius design ensures smooth conduit bends and minimal wire pull resistance
- Plain end allows easy solvent welding for secure conduit connections
- Made of durable rigid PVC, resistant to corrosion and suitable for electrical conduit applications
- ETL listed and compliant with UL651 and NEMA TC3 standards for electrical conduit fittings
- Bend tolerance of ±2 degrees for consistent installation quality
