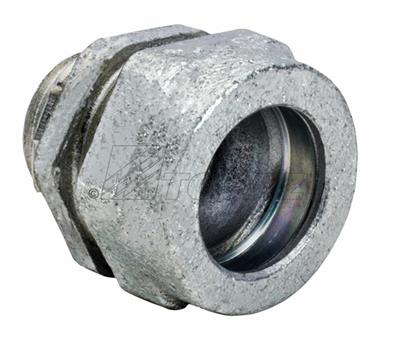

3-1/2" Compression Type Malleable Iron Rigid Connectors – Electrical Conduit Connectors

This 3-1/2" compression type malleable iron rigid connector is designed for securely bonding rigid or IMC conduit to electrical junction boxes or metal enclosures. It provides mechanical protection and a concrete-tight, threadless compression connection suitable for dry location applications. This product is ideal for electrical distributors and lighting solutions providers requiring durable wire and cable conduit fittings.

Specifications

• Material: Malleable Iron
• Connection: Male Threaded x Compression
• Size: 3-1/2"
• Product Weight: 3.35 lbs
• Manufacturer: Southwire
• Manufacturer Part #: 269TZ
• UPC: 751338122536
• UL Listed: UL 514B

Features

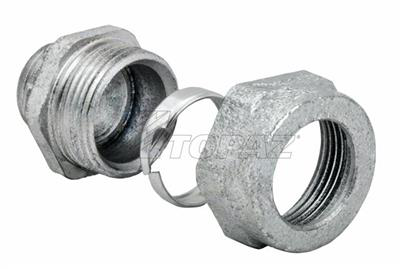

• Compression type connector providing a threadless, concrete-tight seal
• Constructed of malleable iron for lasting mechanical protection
• Suitable for joining unthreaded rigid or IMC conduit to steel outlet boxes or metal enclosures
• Trade size range from 1/2" to 6" for versatile applications
• Zinc plated finish for corrosion resistance

Downloads & Links

• Spec Sheet
