2x2 Flush Duplex Series, Complete Unit, Black
SKU: #149010
Part: #PT2X2BL
UPC: 783585531878
2x2 Flush Duplex Series, Complete Unit, Black
SKU: #149010
Part: #PT2X2BL
UPC: 783585531878
Next day delivery
Description

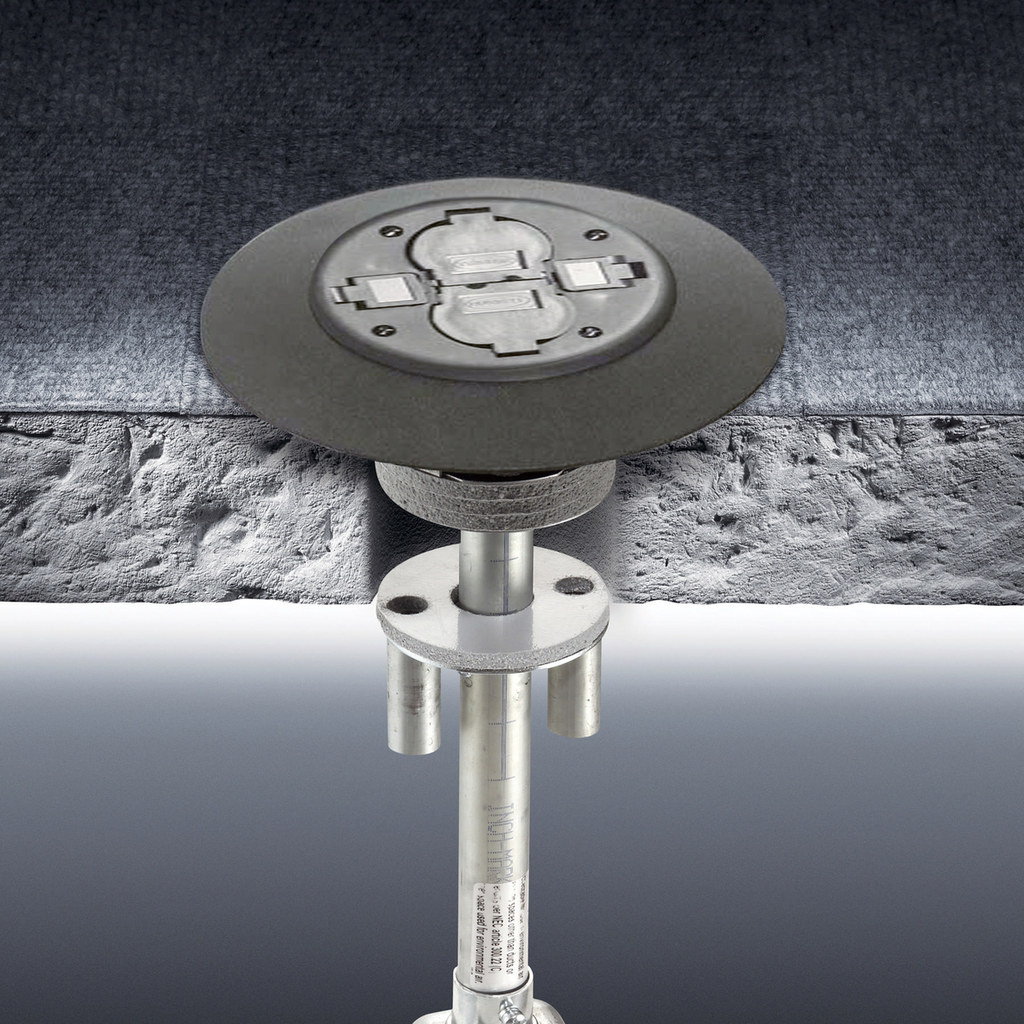

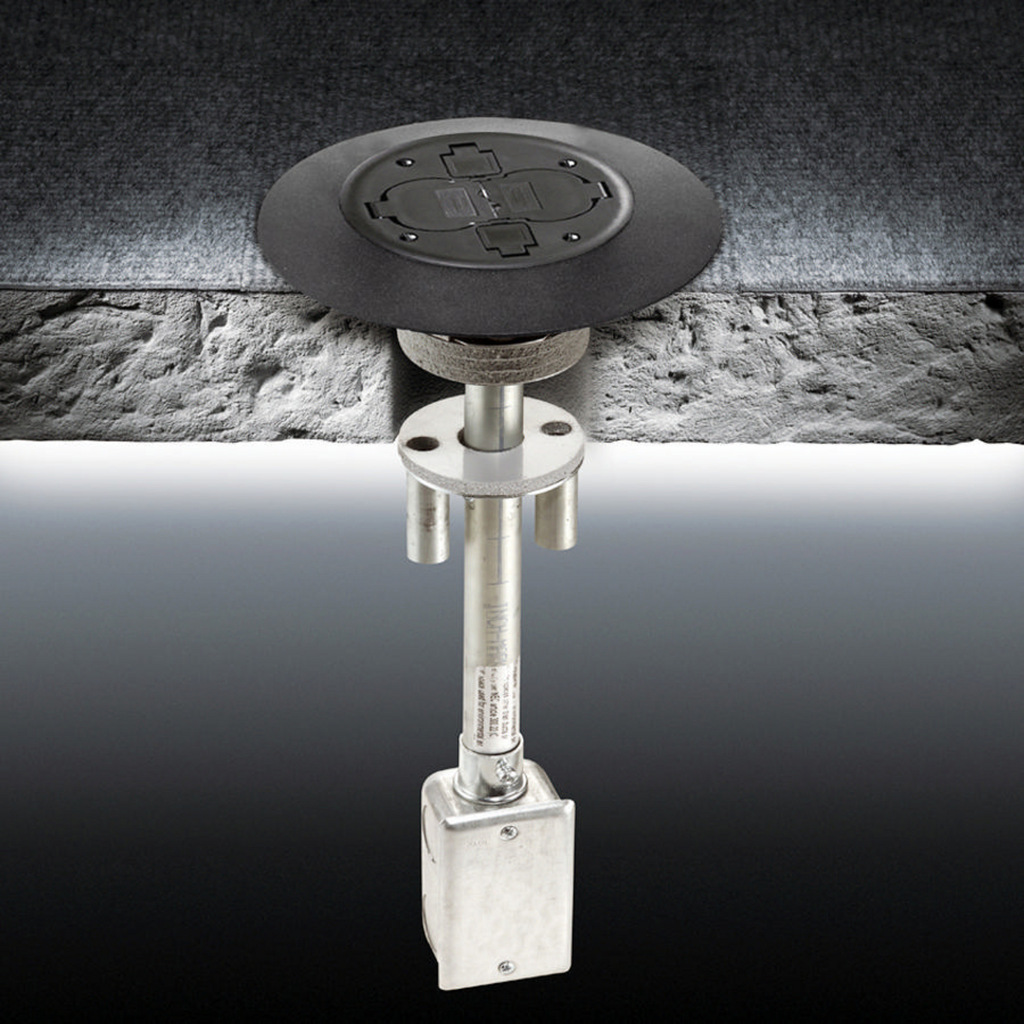

2x2 Flush Duplex Series, Complete Unit, Black – Fire-Rated Poke-Through
The 2x2 Flush Duplex Series Complete Unit is a fire-rated poke-through designed for use in concrete floors, providing a reliable and integrated solution for electrical and data connectivity. This product is ideal for electrical distributors and lighting solutions providers requiring durable, code-compliant floor fittings for wire and cable management in commercial or institutional spaces. It features a prewired 20A duplex receptacle and two installed Category 6 data jacks, making it suitable for power and low-voltage wiring needs in office environments or other carpeted floor applications.
Specifications
- Application: Complete Units for Carpet
- Product Weight: 2.95 lbs
- Color: Aluminum/Black
- Finish: Black
- Material: Composite
- Mounting: 3" Core Hole in Concrete Floor with Step-Down Installation Hardware
- Knockouts: Duplex Flip Covers
- Cable Entry: Cable Access Door
- Number of Outlets: (1) Prewired 20A Duplex Receptacle; (2) Installed Cat 6 Jacks
- Width: 6.97 in
- Construction: Fabricated
- Made in USA: Yes
- Country of Origin: United States
- Listings: cULus Listed, UL 514A Listed, Meets ADA Standards
Features
- Complete 3” Fire-Rated poke-through unit suitable for concrete floor installations
- Prewired 20A Style Line® decorator duplex receptacle for immediate power access
- Includes two installed Category 6 Hubbell Xcelerator data jacks for network connectivity
- Non-metallic cover with painted aluminum flange for durability and aesthetic integration
- Includes junction box for secure wiring connections
- Duplex flip covers for outlet protection and safety
- Approved for use in the City of Chicago, ensuring compliance with local codes
