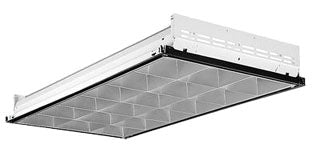

2PM3N G B 3 32 18LD MVOLT 1/3 GEB10IS Parabolic Troffer Lighting Solution

The 2PM3N Paramax® parabolic troffer by Lithonia Lighting is a high-performance luminaire designed for open area indoor applications requiring precise light control, visual comfort, and effective light cutoff. Optimized for use with T8 lamps and electronic ballasts, this fixture is suitable for electrical distributors and lighting solutions providers focusing on commercial indoor lighting, wire and cable integration, and switchgear supply.

Specifications

• Series: 2PM3N Paramax® 3" Louver Family
• Nominal Size: 2' x 4'
• Trim Type: Lay-in grid (G)
• Air Function: No air function (B)
• Number of Lamps: 3
• Lamp Type: 32W T8 (48")
• Number of Cells/Louver: 18 Low-iridescent anodized diffuse silver (18LD)
• Voltage: MVOLT (multi-voltage, standard for 120V and 277V applications)
• Dimensions: Length 48" (121.8 cm), Width 24" (60.9 cm), Depth 4-1/2" (11.4 cm)
• Weight: 32 lbs (14.5 kg)
• Ballast: One 3-lamp electronic ballast, GEB10IS, T8 and CF electronic ballast, ≤10% THD, instant start
• Finish: Low-iridescent anodized diffuse silver aluminum louver
• Listings: UL Listed standard; optional cUL Listed, CSA Certified, NOM Certified

Features

• Design optimized for T8 lamps and electronic ballasts ensuring energy efficiency and reliable performance
• Choice of low-iridescent anodized diffuse silver louvers for minimized iridescence and enhanced light control
• Hemmed sides and ends provide smooth edges for safe and easy handling during installation
• Integral T-bar safety clips secure fixture to T-bar grid without the need for fasteners
• Compatible with most ceiling types including lay-in grid, overlapping flange, and screw slot configurations
• Supplied with protective plastic film on louver face to prevent damage during shipping and installation
• Housing constructed from cold-rolled steel with anodized aluminum louvers; no asbestos used
• Electronic ballasts are sound rated A and thermally protected, complying with US and Canadian electrical codes
• Suitable for damp locations; fixture conforms to UL1570 standards
• Available air function options for air supply/return and dual function (not included in this model)
• Five-stage iron-phosphate pretreatment and high-gloss baked white enamel finish for durability
• 1-year limited warranty provided by manufacturer
