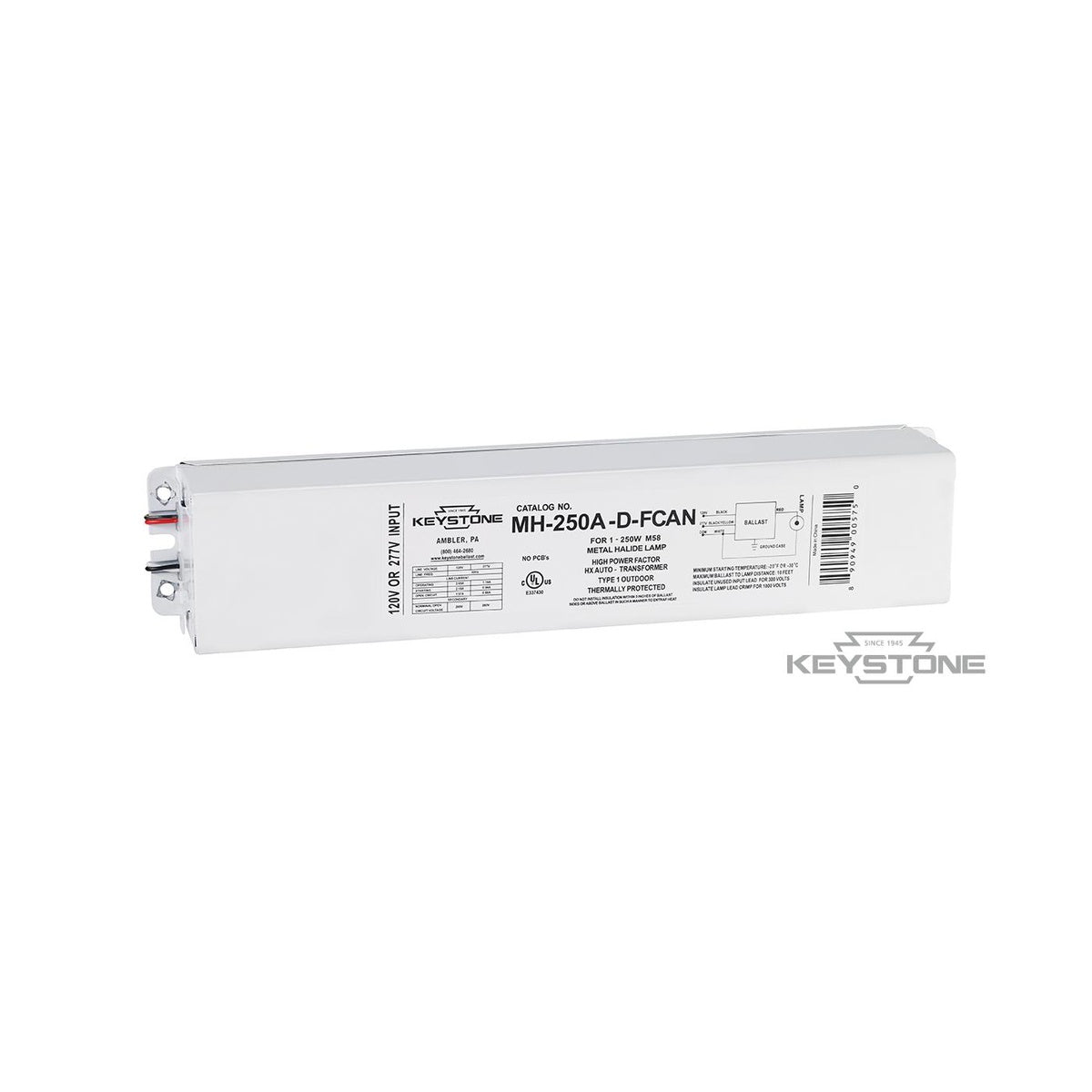

250W (M58) Metal Halide, F-CAN Ballast

The Keystone 250W (M58) Metal Halide F-CAN ballast is engineered for recessed downlighting applications, providing reliable performance in demanding environments. Designed for use by electrical distributors and lighting solutions providers, this ballast supports dual-tap operation at 120/277 volts and is suitable for metal halide lamps requiring F-CAN style ballasts.

Specifications

• Manufacturer Part #: MH-250A-D-FCAN
• Input Voltage: 120/277V
• Number of Taps: Dual
• Input Watts: 314/312W
• Input Current: 2.69/1.16A
• Circuit Type: CWA (Constant Wattage Autotransformer)
• Case Style: D13
• Material: Steel
• Dimensions (L x W x H): 16.10" x 3.23" x 2.75"
• Product Weight: 18.7 lbs
• ANSI Code: M58/H37

Features

• Designed for recessed downlighting in demanding environments
• High performance with long life expectancy
• Dual voltage operation at 120/277 volts
• Thermally protected steel case construction
• Compatible with metal halide lamps requiring F-CAN ballasts

Downloads & Links

• Spec Sheet
