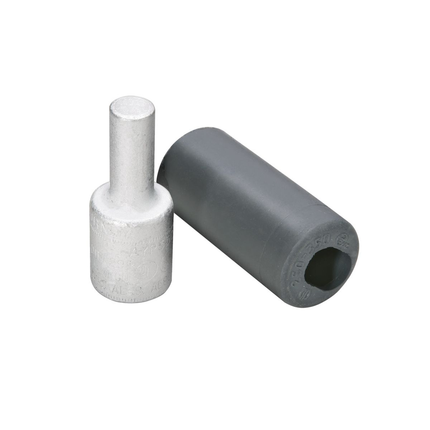

Features

• All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion
• Provides the shortest connector length design possible permitting easy installation in equipment with limited working space
• Solid electro-tin plated aluminum plug
• Proper electrical connection made easily and eliminates the "how tight is tight" issue
• Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment
• Offset plug design available in sizes 2/0 through 750 kcmil providing flexibility and maximizing the use of limited space while eliminating interference between conductors and equipment
• Electro-tin plating resists corrosion
• Factory pre-filled with PENETROX oxide inhibiting compound with conductive metallic particles to penetrate aluminum oxide between strands and forms an air-tight connection
• EPDM rubber covers supplied with each connector and rated for 600V eliminating taping
• Only 5 die sets are required to install the complete line from #6 to 750 kcmil reducing inventory requirements
• Supplied in plastic convenience pack so cover and connector are kept together and free of foreign material until opened
• Connectors are clearly marked with catalog number, wire size, along with a color-coded die index providing clear, easy to use information

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - AL Str Size: 250 KCMIL
• Conductor - AL Str Size Range: 250 kcmil
• Conductor - Copper DLO Size: 4/0 AWG
• Conductor - Copper DLO Size Range: 4/0 AWG
• Conductor - Copper Flex I Size: 250 KCMIL
• Conductor - Copper Flex I Size Range: 4/0 AWG
• Conductor - Copper Flex K Size: 4/0 AWG
• Conductor - Copper Flex K Size Range: 4/0 AWG
• Conductor - Copper Flex M Size: 4/0 AWG
• Conductor - Copper Str Compact Size: 250 KCMIL
• Conductor - Copper Str Size: 250 KCMIL
• Conductor - Copper Str Size Range: 250 kcmil
• Conductor - Material: ALUMINUM / COPPER
• Description - Slang: Compression Aluminum Pin Adapters
• Dimension - A Outside Diameter inch: 1.10 in
• Dimension - B Length fraction: 1-1/16 in
• Dimension - B Length inch: 1.07 in
• Dimension - B Outside Diameter inch: 0.47 in
• Dimension - L Length Overall mm: 67 mm
• Dimension - Length Overall inch: 2.63 in
• Dimension - P inch: 1.22 in
• Dimension - Strip Length inch: 1-1/8
• Width: 1.10 in
• Each - Width: 1.10 in
• Equivalent Pin Size: 3/0 AWG
• Industry Standard(s): UL 486A-486B
• Insulation Type: EPDM Rubber
• Physical Attribute - Number of Crimps Required: 2
• Pin Type: Solid
• Plated: Y
• Plating Type: Tin
• Product Type: TERMINAL
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• Trade Name: HYPLUG™
• Application: Wire Termination
• Conductor Type: CODE/FLEX
• Finish: Tin-Plated
• Insulation: Y
• Standard: UL 486A-486B
• Sub Brand: HYPLUG
• Temperature Rating: 194
• Type: Aluminum Pin Adapters
• Voltage Rating: 35 kV
• Conductor Size: 250 KCMIL
• Connector Type: INLINE PIN
• Finish Type: Tin-Plated
• Terminal Type: Pin
• Wire Size: 250 KCMIL
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B55
• Description - Invoice: 250KCMIL AL HYPLUG
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 11 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B55BIDF
• Die Index: 299
• UL Listed: Yes
• Color Code: Brown
• Material: ALUMINUM
• Voltage - Maximum: 35000 V
• Base Unit of Measure: EA
• BOX SIZE: 5.125x7.373x6.438 (in)
• Carton - Gross Weight per Pack: 2.000 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810737668
• Carton - Total Units: 10
• Case - SCC-14 Next Lower Level Sub Pack: 30781810737669
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 2 lb.
• Package - GTIN - Package: 30781810737669
• Package - Number of Sub Packs: 10
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810737668
• Package - Total Units: 10 EA
• Package Height: 4.50 in
• Package Length: 7.06 in
• Package Quantity: 10 EA
• Package Weight: 2 lb.
• Package Width: 6.13 in
• Pallet - GTIN - Package: 70781810737667
• Pallet Height: 46.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 637.000 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 10

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
