24WD62 Panelboard Enclosure - Siemens Lighting Panel Enclosure

The 24WD62 Panelboard Enclosure by Siemens is designed specifically for housing lighting panels, offering a reliable and durable solution suitable for electrical distributors and lighting solutions providers. This enclosure supports the protection and organization of wire and cable connections in lighting panelboard applications, ensuring safety and compliance with industry standards.

Specifications

• Product Name: 24WD62, Panelboard Enclosure
• Manufacturer: Siemens
• Manufacturer Part Number: 24WD62
• Application: Enclosure for Lighting Panels
• Product Weight: 60 lbs

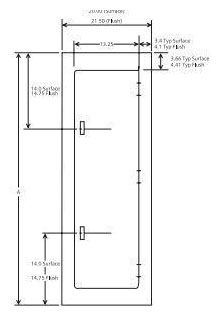

• Width: 24.625 inches
• Height: 62.125 inches
• Width Unit of Measure: Inch
• Height Unit of Measure: Inch
• Panelboard Type: P3 Series (according to enclosure cataloging)

Features

• Type 1 enclosure, suitable for indoor use
• Standard panelboard enclosure dimensions supporting lighting panel configurations
• Compatible with Siemens panelboards, including the P3 series lighting and distribution panels
• Supports modular installation of breakers and wiring to simplify electrical distribution
• Robust steel construction with options for surface or flush mounting
