24Hr Time Switch 40A 120/208-277V Indoor | Multi-Voltage Time Switch

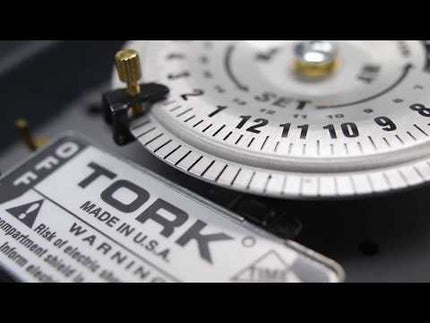

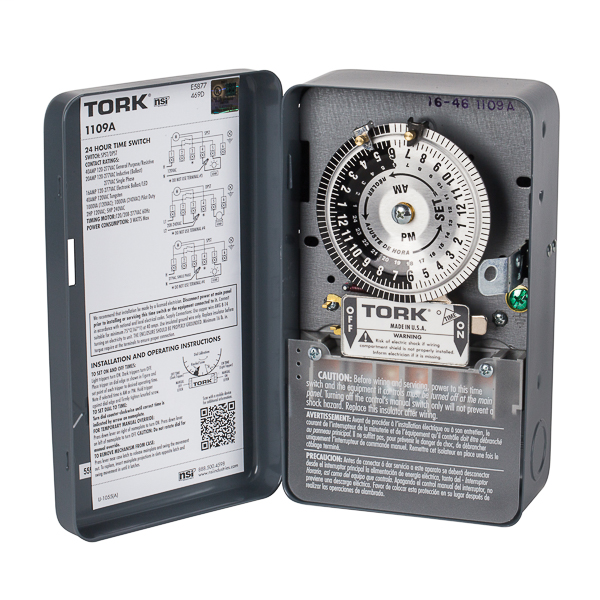

The 24Hr Time Switch 40A 120/208-277V Indoor by NSI Industries is a mechanical time switch designed for precise daily ON/OFF control in electrical distribution and lighting solutions. It is suitable for applications including lighting, pumps, air conditioning, water heaters, and fans, making it an essential component for electrical distributors and switchgear suppliers managing timed power control. This DPST (Double Pole Single Throw) switch operates at 120 to 277 VAC and features a durable NEMA 1 metal indoor enclosure with screw mounting.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 1109A
• Input Voltage: 120-277 VAC, 60 Hz
• Contact Rating: 40A general purpose (120-277 V)
• Number of Poles: 2 (DPST)
• Number of Pins: 12 Pair
• Mounting: Screw Mount
• Enclosure: NEMA 1 Metal Indoor
• Frequency Rating: 60 Hz
• Operating Temperature: -40 to 165 °F (-40 to +74 °C)
• Product Weight: 2.75 lbs
• Base Type: Screw
• Initiation: Contact

Features

• Designed for multi-voltage applications at 120V and 277V
• Dust-proof, sealed motor housed in a heavy-duty metal enclosure for extended life
• UL certified to control all LED applications
• Easy-to-override manual ON/OFF setting with a 24-hour timer dial
• Multiple load ratings accommodate various electrical requirements including resistive, tungsten, ballast, electronic ballast (LED), pilot duty, and motor loads
• Intuitive adjustments made easily at the clock interface
• Suitable for indoor electrical control applications requiring reliable daily timing

Downloads & Links

• tork_productflyers_1109a_flyer_080618_v2.pdf
• Catalog Page
• Specification Page
• LI-1055_revC_1109_1109A-O_doorlabel.pdf
