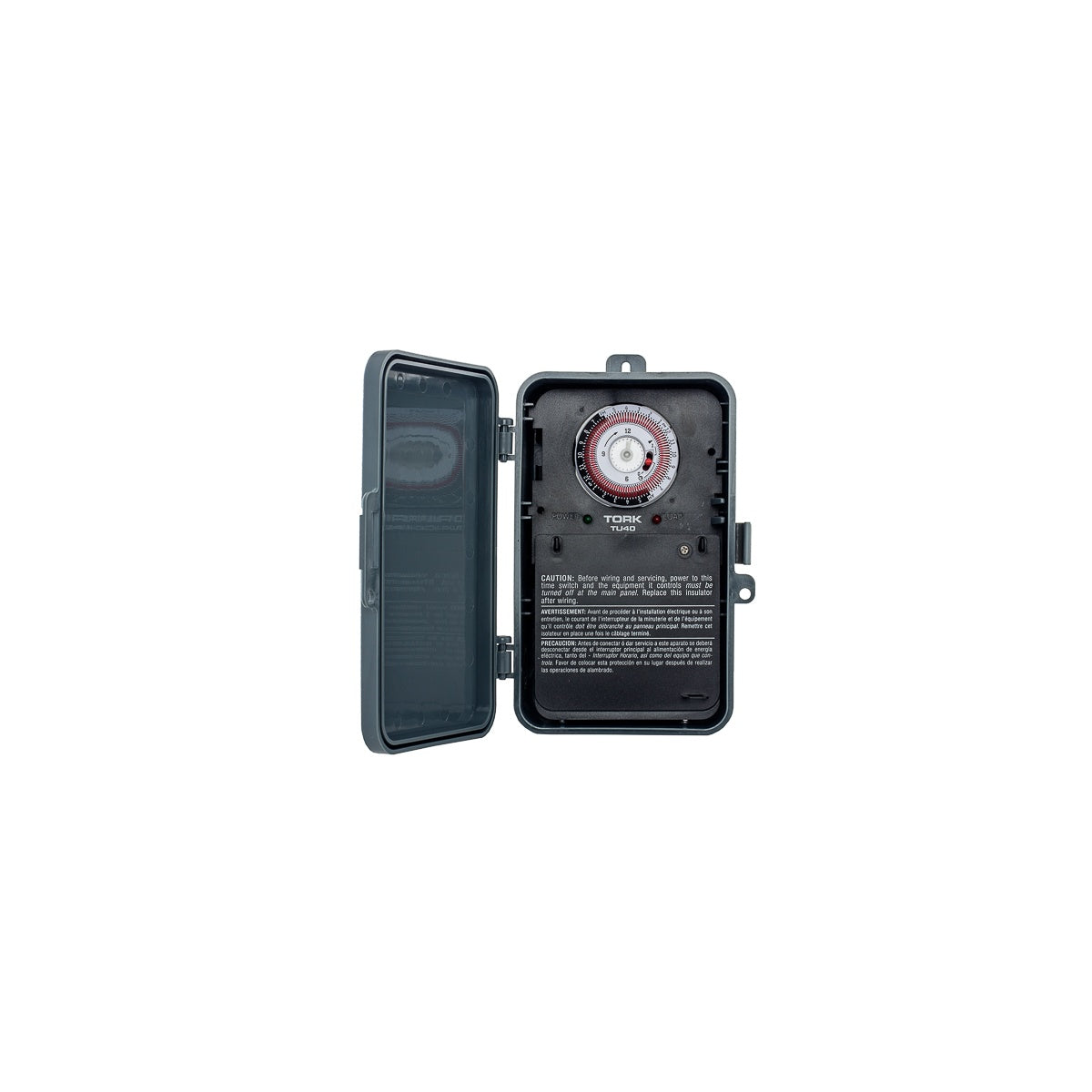

24 Hour Timer 40A 120-277V DPDT Outdoor - Time Switch for Electrical Control

This 24 Hour Timer from NSI Industries is a multi-voltage time switch designed for precise daily ON/OFF control of electrical loads. Suitable for indoor and outdoor applications, it is ideal for lighting, pumps, motors, fans, heating, air-conditioning, and security systems. The device features automatic input voltage detection and a DPDT (Double Pole Double Throw) contact configuration, supporting a wide range of electrical distributor needs in wire and cable management and switchgear supply.

Specifications

• Input Voltage: 120/208-240/277 VAC, 60 Hz (auto detection)
• Contact Rating: 40A Resistive @ 120-277VAC, 30A Inductive @ 120-277VAC
• Number of Poles: 2
• Number of Pins: 96
• Frequency Rating: 60 Hz
• Operating Temperature: -31°F to 116°F (-35°C to 47°C)
• Power Consumption: 6 watts maximum
• Terminal Range: #8 - #18 AWG
• Enclosure: NEMA 3R Polycarbonate Plastic Indoor/Outdoor
• Dimensions (W x H x L): 5.062 in x 8.312 in x 3.062 in
• Mounting: Screw Mount
• Initiation: Contact
• Base: Screw
• Manufacturer Part #: TU40

Features

• Automatic input voltage detection with no DIP switch settings
• Real-time clock face with captive trippers and day/night indication
• 4-in-1 DPDT contacts configurable as SPST, SPDT, or DPST
• ON/OFF/AUTO switch for flexible control modes
• LED indicators: green for power, red for load status
• Lockable hasp standard for secure enclosure
• Suitable for 7-day control cycles
• UL60370 Listed for safety compliance
