Description
Features
- Controls loads up to 40 A per pole
- Direct 24-hour control of most loads
- Up to 10 ON/OFF operations each day
- Minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper and three day-skipper screws included
Compliance
- CSA Certification File Number -> C22.2-177; LR3730
Prop 65
- Please see the Warning @ www.P65Warnings.ca.gov - Lead
Specifications
- Country of Origin: Mexico
- Product Height: 10.125 in; 257.2 mm
- Product Depth: 3.625 in; 92.1 mm
- Operating Temperature Min: -40°F; -40°C
- Operating Temperature Max: 130°F; 54°C
- Warranty Period: 1-Year limited
- Motor Single Phase Ranges: 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
- Motor Three Phase Ranges: 7 1/2 HP, 28 FLA @ 208 VAC, 60 Hz; 10 HP, 28 FLA @ 240 VAC, 60 Hz
- Minimum On Off Time: 1 hour
- Maximum On Off Operations: 10
- Skipper Wheel Operation Mode: Not Included
- Operation Mode: 24 hour
- UL Cerfication File Number: UL916
- Applications: Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control
- Application Compatibilities: LED; HID
- Wire Size Min: #14 AWG
- Wiring Option: Terminals
- Input Voltage Ranges: 120 VAC, 60 Hz
- Wire Size Max: #8 AWG
- Number Of Circuits: 1
- Enclosure Type: Outdoor type 3R metal
- Switch Type: 4-SPST
- Power Consumption Max W: 3 W
- Pilot Duty Load Ratings Ranges: 1000 VA, 120-277 VAC, 60 Hz
- Has Manual Override CVL: Yes
- PDF Standards And Certifications: cULus; cCSAus; LED
Certifications
- UL Certification: cULus
- CSA Certification: cCSAus
- Other Certifications: LED
Load Ratings
- Pilot Duty Load Ratings: 1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz; 1000 VA, 277 VAC, 60 Hz
- Electronic Ballast Load Ratings: 16 A, 277 VAC, 60 Hz
- Electronic Ballast Load Ratings Ranges: 16 A, 277 VAC, 60 Hz
- Tungsten Load Ratings: 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz
- Tungsten Load Ratings Ranges: 40 A, 120-277 VAC, 60 Hz
- Resistive Load Ratings: 40 A, 480 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Resistive Load Ratings Ranges: 40 A, 120-480 VAC, 60 Hz
- Inductive Load Ratings: 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
- Inductive Load Ratings Ranges: 40 A, 120-277 VAC, 60 Hz
Downloads

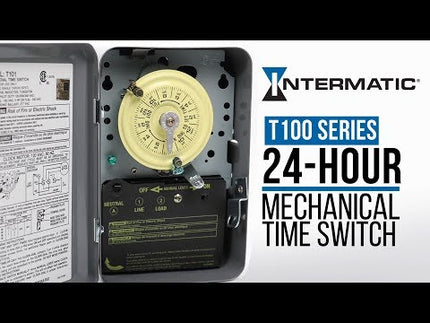

Instruction SheetsVideos
More Information
Manufacturer Catalog Number
T1471BR
Weight
3.7420
Height
10.125
Country of Origin
Mexico
Applications
Indoor Lighting Control
Depth
3.625 inches
Prop 65 Message
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Warranty Length
1 years
