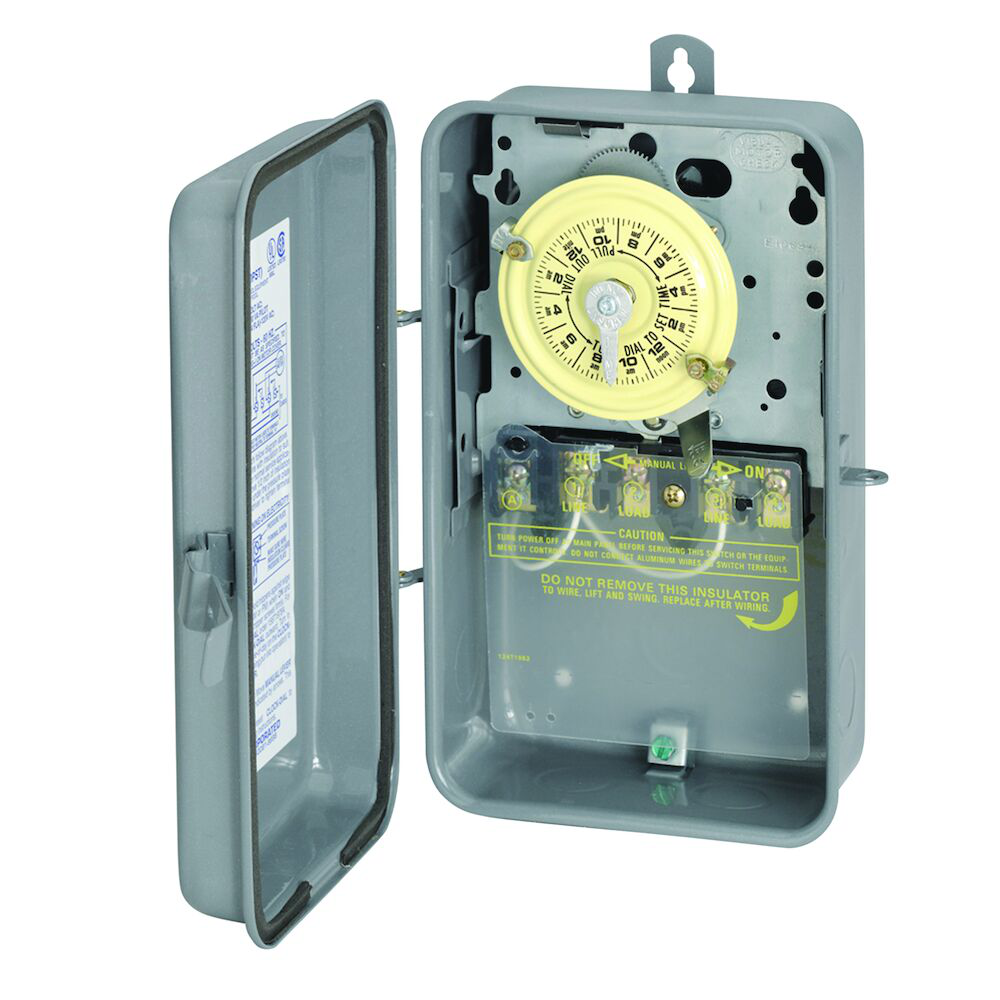

Features

• Direct 24-hour control of most loads
• Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
• Manual override
• One ON and one OFF tripper included
• Can be installed in most Intermatic enclosures

Compliance

• CSA Certification File Number -> C22.2;LR3730

Prop 65

• Please see the Warning @ www.P65Warnings.ca.gov - Lead

Specifications

• Country of Origin: Mexico
• Product Height: 10.125 in; 257.2 mm
• Product Depth: 3.625 in; 92.1 mm
• Operating Temperature Min: -40°F; -40°C
• Operating Temperature Max: 130°F; 54°C
• Warranty Period: 1-Year limited
• Minimum On Off Time: 1 hour
• Maximum On Off Operations: 12
• Skipper Wheel Operation Mode: Not Included
• Timing Interval: 1 hr
• Operation Mode: 24 hour
• UL Cerfication File Number: UL917
• Applications: Timing/Scheduling ON/OFF; Indoor Lighting Control; Outdoor Lighting Control
• Application Compatibilities: LED; HID
• Wire Size Min: #14 AWG
• Wiring Option: Terminals
• Input Voltage Ranges: 208-277 VAC, 60 Hz
• Wire Size Max: #8 AWG
• Number Of Circuits: 1
• Enclosure Type: Indoor/outdoor type 3R metal
• Switch Type: DPST
• Power Consumption Max W: 3 W
• Pilot Duty Load Ratings Ranges: 1000 VA, 120-277 VAC, 60 Hz
• Number Of Trippers Included: 1 ON/1 OFF
• Has Manual Override CVL: Yes
• PDF Standards And Certifications: cULus; cCSAus; LED

Certifications

• UL Certification: cULus
• CSA Certification: cCSAus
• Other Certifications: LED

Load Ratings

• Pilot Duty Load Ratings: 1000 VA, 120 VAC, 60 Hz; 1000 VA, 208 VAC, 60 Hz; 1000 VA, 240 VAC, 60 Hz; 1000 VA, 277 VAC, 60 Hz
• Electronic Ballast Load Ratings: 16 A, 120 VAC; 16 A, 208 VAC; 16 A, 240 VAC; 16 A, 277 VAC
• Electronic Ballast Load Ratings Ranges: 16 A, 120-277 VAC
• Tungsten Load Ratings: 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz
• Tungsten Load Ratings Ranges: 40 A, 120-277 VAC, 60 Hz
• Resistive Load Ratings: 40 A, 480 VAC, 60 Hz; 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz; 40 A, 347 VAC, 60 Hz
• Resistive Load Ratings Ranges: 40 A, 120-480 VAC, 60 Hz
• Inductive Load Ratings: 40 A, 277 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
• Inductive Load Ratings Ranges: 40 A, 120-277 VAC, 60 Hz
• Motor Load Ratings Ranges: 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz

Knockout

• Knockout Dimensions Bottom: (2) combination 1/2" - 3/4"
• Knockout Dimensions Back: (1) combination 1/2" - 3/4"

Downloads

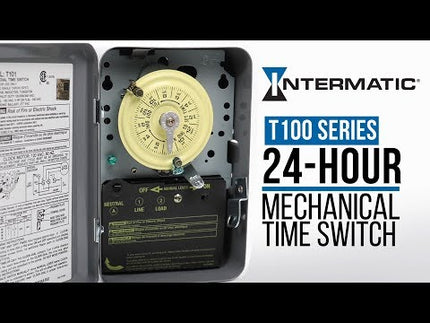

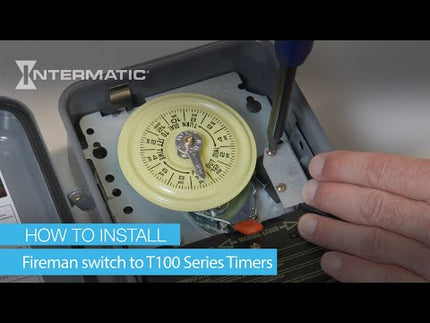

Videos
