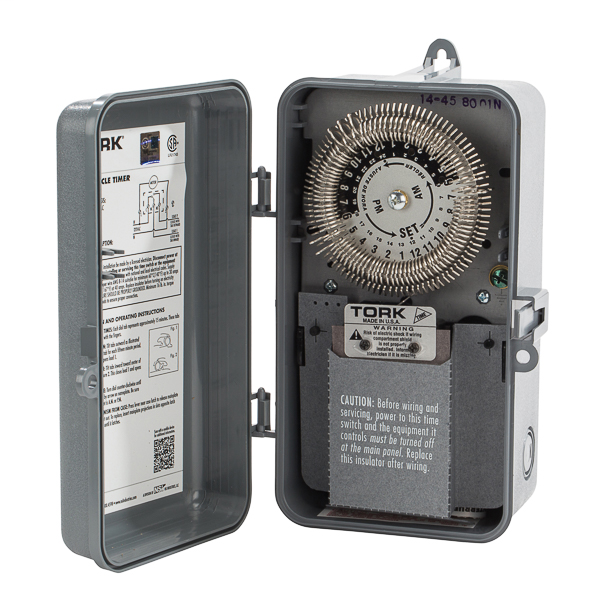

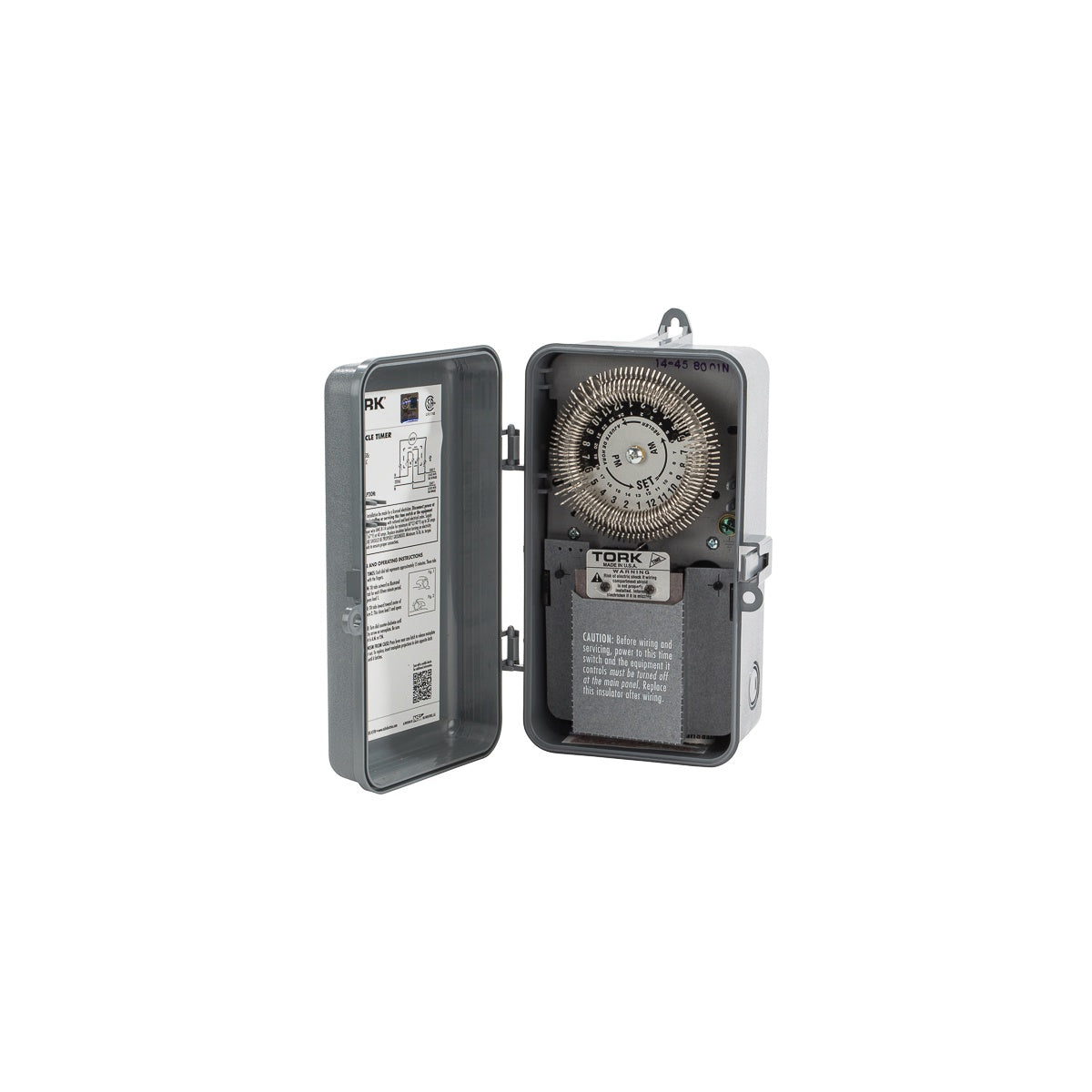

24 Hour Cycle Timer 20A 120V SPDT Outdoor - Time Switch

This 24 Hour Cycle Timer from NSI Industries is designed for precise daily ON/OFF electrical control in a variety of applications including duty cycling, ventilating fans, pumping, irrigation, and process control. Suitable for indoor or outdoor use with a durable plastic enclosure, it provides reliable timing solutions for electrical distributors, lighting solutions, wire and cable management, and switchgear suppliers requiring dependable time-based switching.

Specifications

• Input Voltage: 120 VAC, 60 Hz
• Output Contacts: SPDT (Single Pole Double Throw)
• Contact Rating: 20A resistive at 120 volts
• Operating Temperature: -40 to 165 degrees Fahrenheit
• Dimensions: 9.125 in (Height) x 5 in (Width) x 4.5 in (Length)
• Power Consumption: 3 watts
• Terminal Range: #8 - #14 AWG
• Enclosure: Noryl® Indoor/Outdoor NEMA 3R plastic enclosure with lockable hasp
• Timing Accuracy: Line frequency based
• Product Weight: 2.274 lbs

Features

• 24-hour duty cycle with multiple daily ON/OFF operations
• Scheduling with minimum ON and OFF settings of 15 minutes using 96 captive tabs
• Adjustable duty cycle options: ½, 1, 2, 3, 4, 6, 12, and 24 hours
• SPDT action for versatile switching
• Durable enclosure suitable for indoor/outdoor environments
• Optional reserve power available on select models to maintain dial time up to 16 hours during power outages
• Enclosed motor protects gears for extended life
• UL917 Listed standard compliance
• Compatible with Intermatic® adaptor plate model #IAP for flexible mounting
