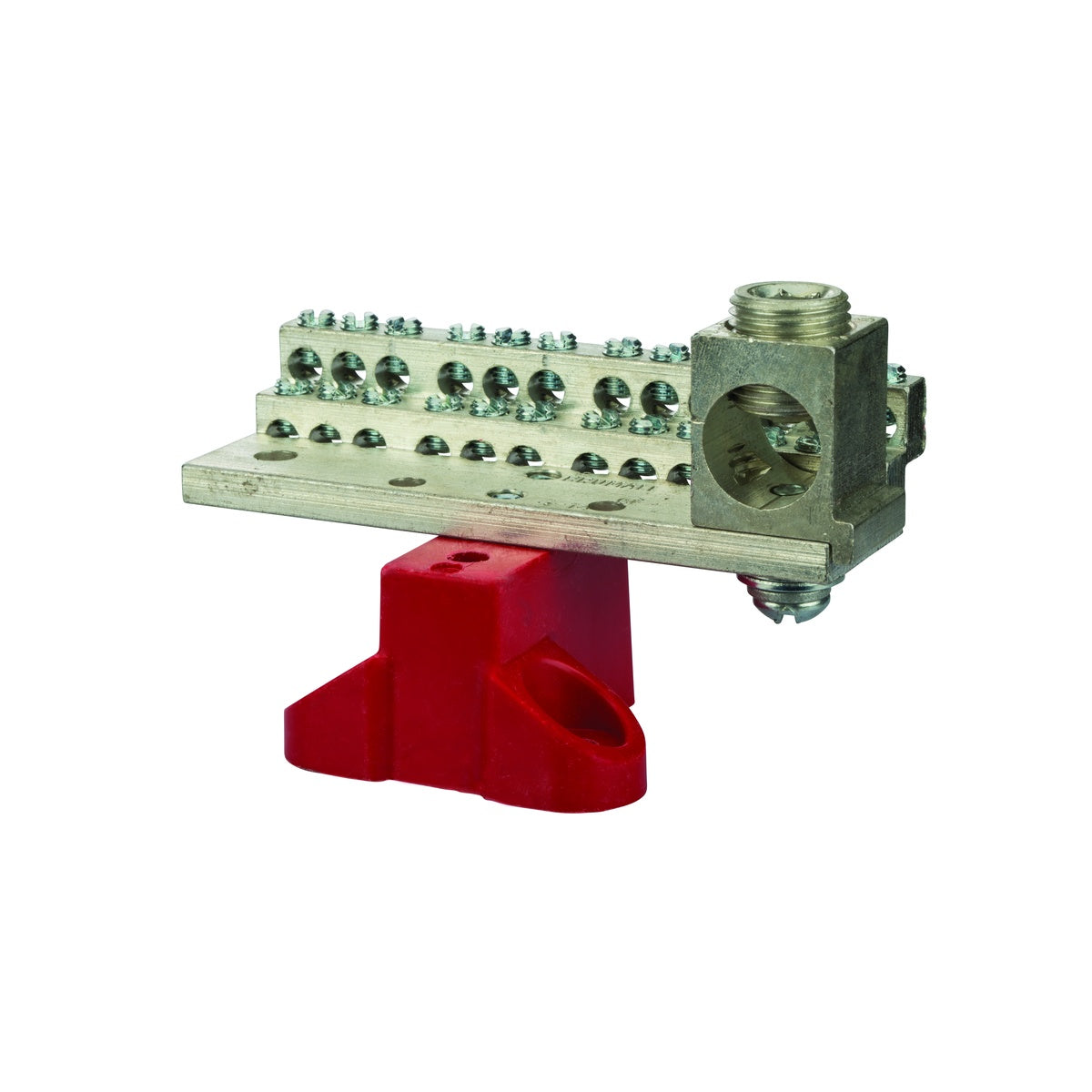

24 Crct Stked Neut C/W Base – Stacked Neutral Bar

This 24 Circuit Stacked Neutral Bar is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and switchgear suppliers. It supports 225A current and is suitable for connecting 4-14 AWG wire circuits with a main lug accommodating 350 MCM to 6 AWG conductors. The product is constructed from high-strength 6061T-6 aluminum alloy and includes a mounting base for secure installation, making it a reliable component for lighting solutions, wire and cable management, and electrical distribution systems.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: 1024MB
• Application: Wire Termination
• Conductor Size: (24) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
• Conductor Material: Aluminum
• Material: 6061T-6 Aluminum Alloy
• Dimensions: 4.321 in (Length) x 2.75 in (Height) x 2.25 in (Width)
• Product Weight: 0.4180 lbs
• Rated Current: 225A
• Made in USA: Yes
• Country of Origin: United States

Features

• Compact stacked design minimizes width by stacking wire holes
• One-piece construction for superior mechanical performance
• High-strength 6061T-6 aluminum alloy construction
• Includes a high-strength, glass-filled polyester mounting base for isolated mounting
• Supports up to 24 circuits with wire sizes from 4 to 14 AWG
• Main lug accommodates 350 MCM to 6 AWG conductors

Downloads & Links

• Spec Sheet
