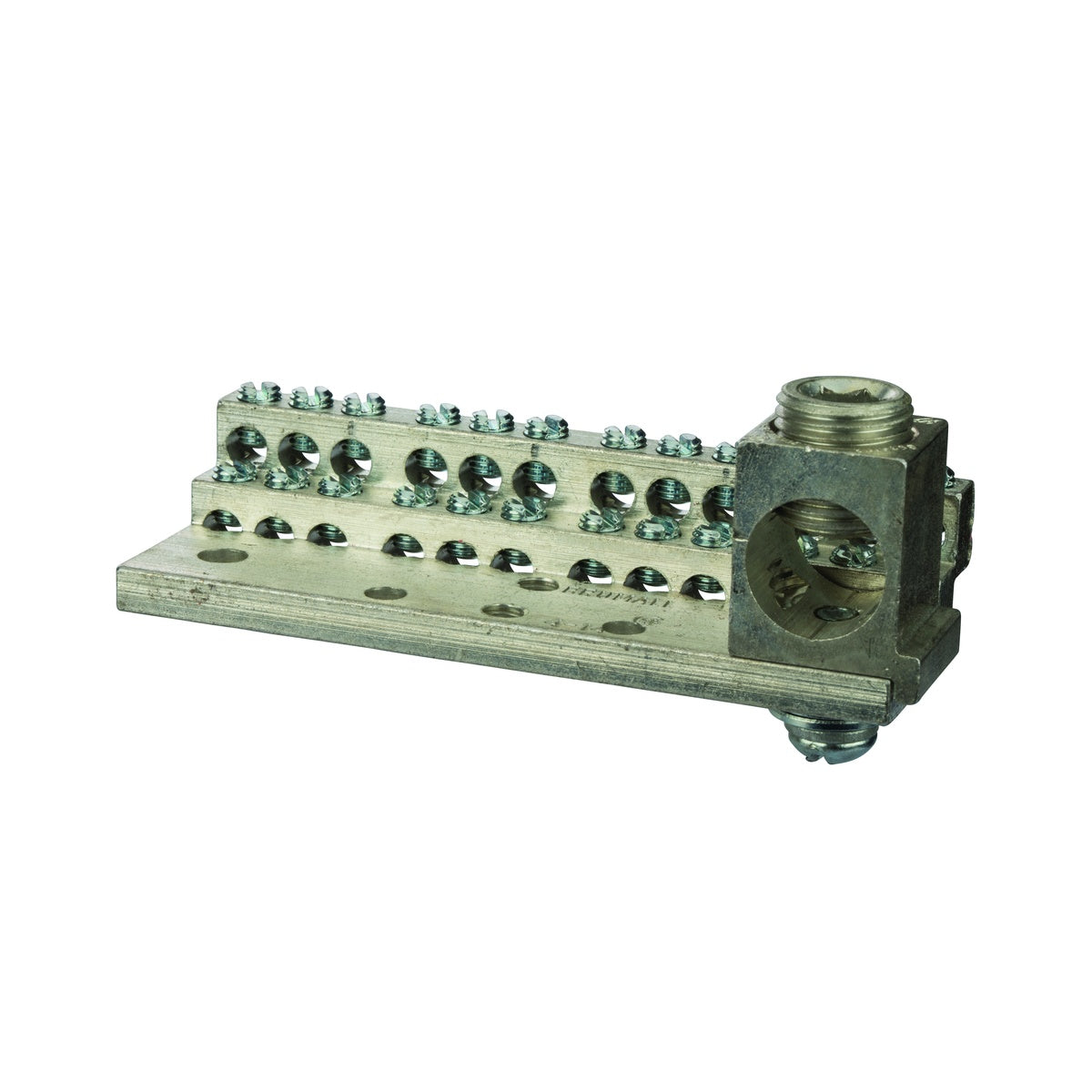

24 Crct Stacked Neutral with Mount – Neutral Bar for Electrical Wire Termination

This 24 circuit stacked neutral bar is designed for wire termination applications, providing a compact and efficient solution for electrical distributors and switchgear suppliers. Manufactured by NSI Industries, it supports 225A and accommodates wire sizes from 4 to 14 AWG for circuits, with a main lug capacity of 350 MCM to 6 AWG. The product is constructed from high-strength 6061T-6 aluminum alloy, ensuring durability and reliable conductivity in lighting solutions and wire and cable installations.

Specifications

• Application: Wire Termination
• Conductor Size: (24) 4-14 AWG Circuits, (1) 350 MCM-6 AWG Main Lug
• Material: 6061T-6 Aluminum Alloy
• Conductor Material: Aluminum
• Dimensions: Length 4.321 in, Height 1.375 in, Width 1.5 in
• Product Weight: 0.4180 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: 1024M
• Made in USA: Yes
• Country of Origin: United States
• Order Minimum: 1

Features

• Compact stacked design minimizes width for space-efficient installation
• One-piece construction provides superior mechanical performance
• Supports up to 24 circuits with wire holes stacked for optimal layout
• Includes a 350 MCM main lug for heavy gauge conductor connections
• Constructed from high-strength aluminum alloy for durability
