22 CU.IN. S/G ZIPBOX W/N
SKU: #16174
Part: #B122A-UPC
UPC: 034481091332
22 CU.IN. S/G ZIPBOX W/N
SKU: #16174
Part: #B122A-UPC
UPC: 034481091332
Description

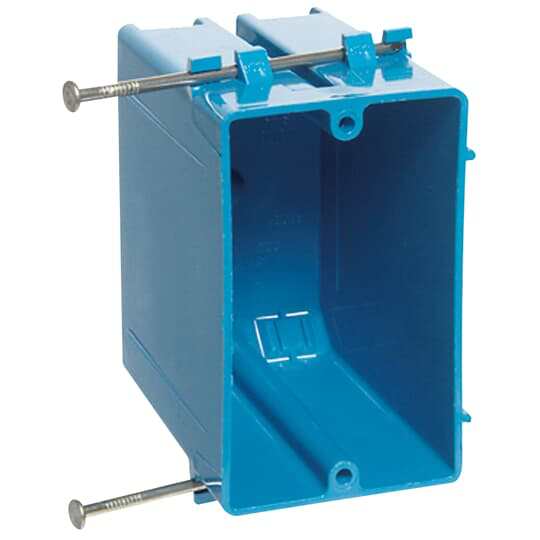

22 CU.IN. S/G ZIPBOX W/N - One-Gang Nail-On Outlet Box
The Carlon 22 CU.IN. S/G ZIPBOX W/N is a one-gang nail-on new work outlet box designed for use with non-metallic sheathed cable in compliance with Article 314 of the National Electrical Code. This outlet box is made from durable blue PVC, providing easier installation, enhanced performance, and cost efficiency. It is suitable for residential and light commercial electrical distributor applications, including lighting solutions, wire and cable management, and switchgear installations.
Specifications
- Volume: 22 Cubic Inches
- Dimensions: Length 3-3/4 inches, Width 2-1/4 inches, Depth 3-1/2 inches
- Material: PVC
- Color: Blue
- Mounting Means: Nails
- Manufacturer: Carlon
- Manufacturer Part Number: B122A-UPC
- UL Listing: UL E11461
- RoHS Compliant: Yes
- Country of Origin: United States (US)
Features
- Constructed from PVC for easier installation and greater durability
- Listed for use with non-metallic sheathed cable
- Meets UL514C standards and UL classified for two-hour fire wall and/or fire ceiling
- Permissible for use with 90°C conductors
- Designed for new work applications with nail-on mounting
- Blue color for easy identification
