Features

• Spill water tested
• UL Listed for countertop installation.
• Permanent installation ready (suitable for MC cable or non-metallic sheath cable
• Easy installations - simply drop in and tighten.
• Charge multiple devices at the same time
• LED Light indicates power to the ports
• Type A and C USB ports
• Durable: Push-down to pop-up function is rated for a minimum of 10,000 cycles
• Stability: Tower won’t wiggle in enclosure
• Accepts non-metallic sheathed cable and/or metal conduit
• Suitable for 20 Amp circuit, end of line
• Includes 3 replaceable tops in black, white, and grey
• Surface Mount

Specifications

• Country of Origin: China
• Current / Amperage Rating: 20 A

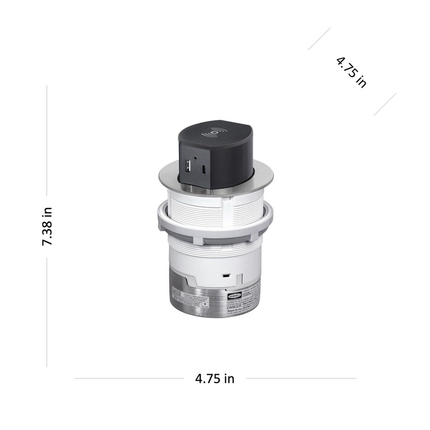

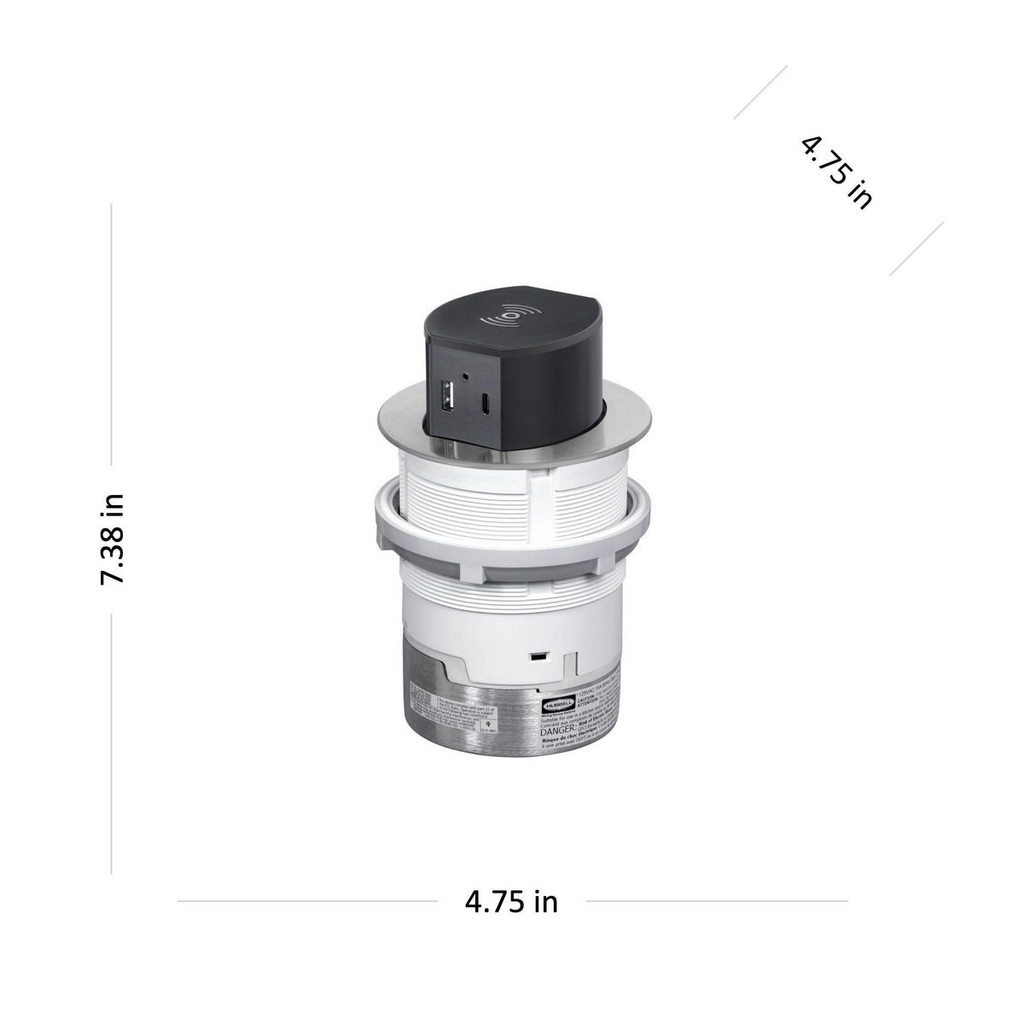

• Dimensions: 4.75 in x 4.75 in x 7.38 in
• Width: 5.200 in
• Each - Width: 5.200 in
• Industry Standard(s): UL
• Application: Power on Counter Top
• Cable Entry: Kos in Bottom
• Color: Aluminum
• Height: 7.38 in
• Knockouts: 1 - 1/2 Inch Knockout
• Length: 4.75 in
• Mounting: In Kitchen Counter Top
• Number of Outlet: Combo Single/USB
• Size: 4.75 in x 4.75 in x 7.38 in
• Special Features: Surface Mount
• Standard: UL
• Sub Brand: Under Counter Boxes
• Type: Wireless, USB & Power
• Voltage Rating Description: 125 V
• Mounting Type: In Kitchen Counter Top
• Nema Rating: 5-20R
• Number Of Outlets: Combo Single/USB
• Number Of Poles: 2
• Number Of Wires: 3
• Style: Surface
• Class Code: A80
• Freight Class Code: 06168002
• Harmonization Code: 8536698000
• Image Actual Or Representative: A
• Sub Class Code: A80A835
• Construction: Fabricated
• Material: 220 Meunt
• Series: Countertop Receptacle
• Base Unit of Measure: EA
• BOX SIZE: 8.500x25.600x10.700 (in)
• Carton - Gross Weight per Pack: 17.000 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00883778310546
• Carton - Total Units: 10
• Case Weight: 23.550 lb.

Certifications

• EU RoHS Indicator: Contact Manufacturer
