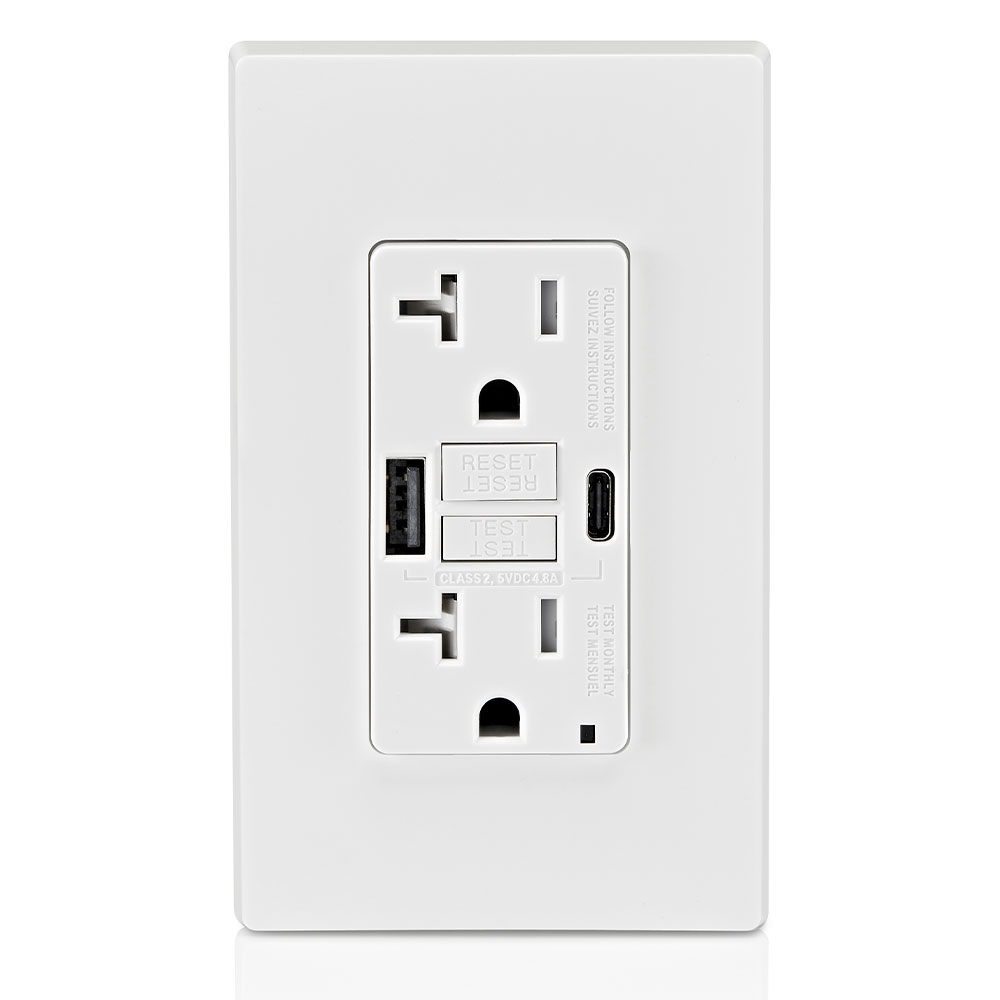

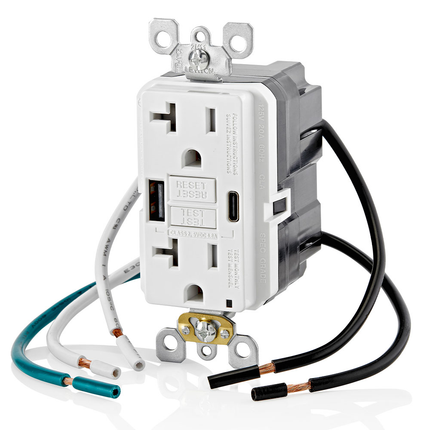

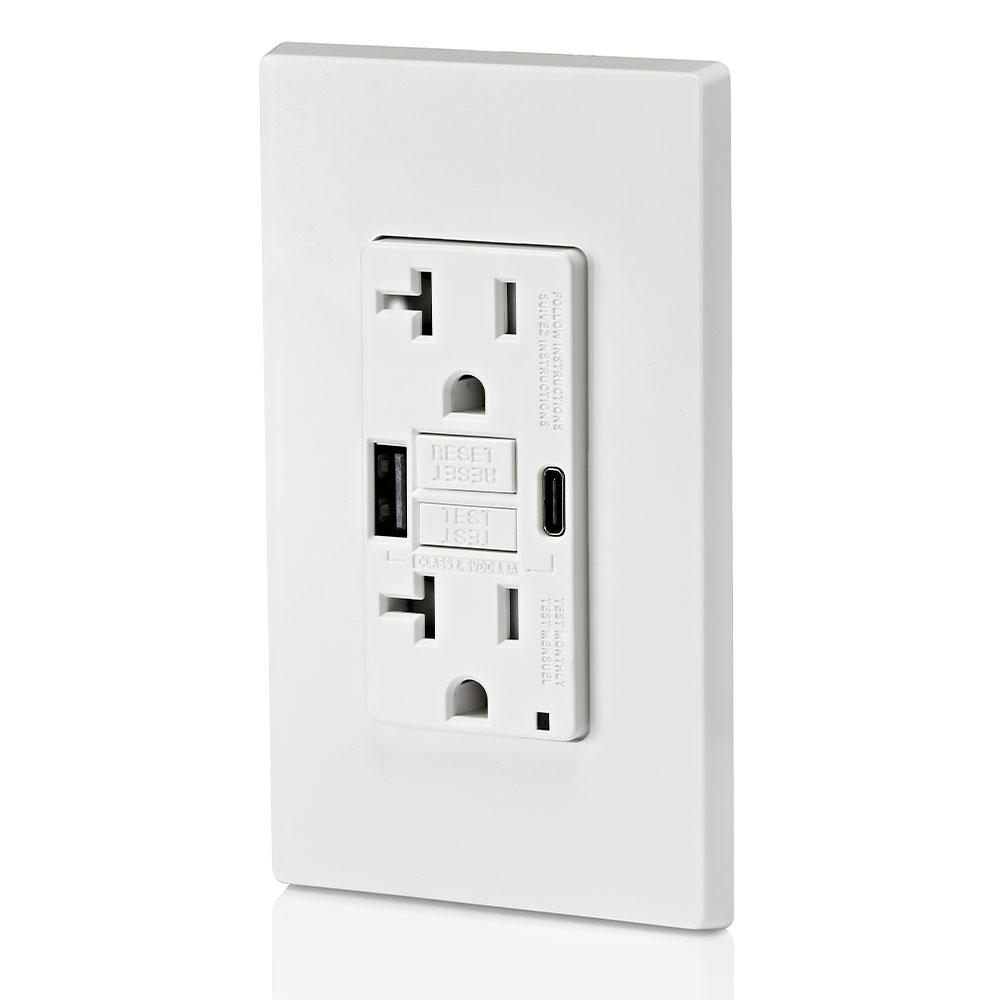

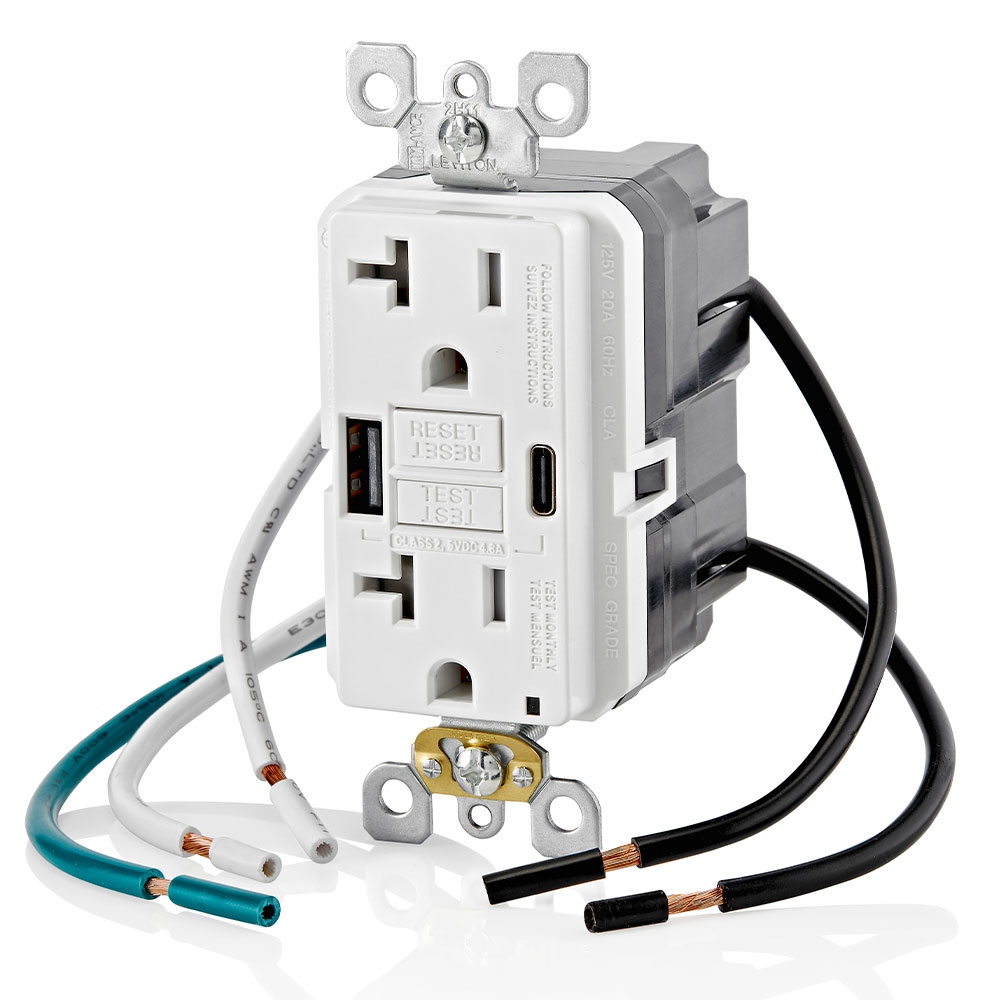

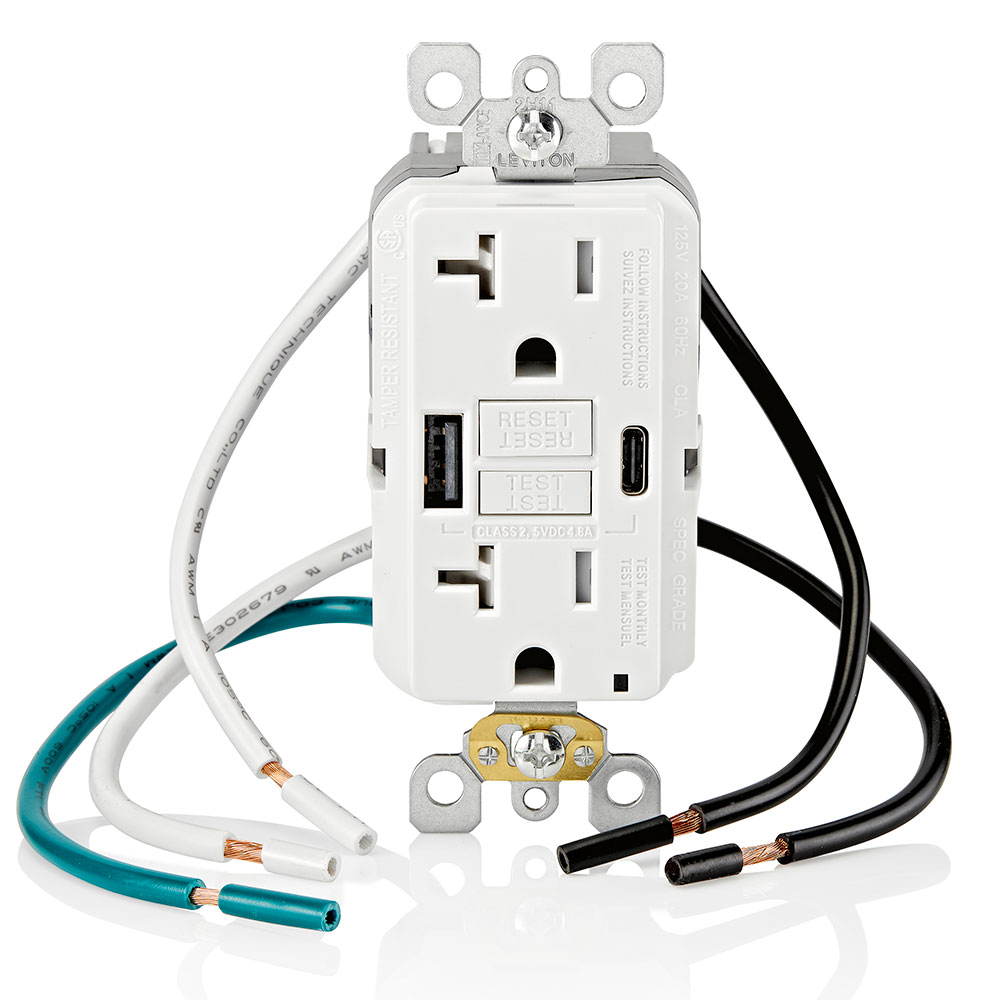

20A SmartlockPro® Self-Test GFCI Combination 24W(4.8A) Type A/C USB In-Wall Charger Outlet – White
SKU: #379294
Part: #GUAC2-W
UPC: 078477996119
20A SmartlockPro® Self-Test GFCI Combination 24W(4.8A) Type A/C USB In-Wall Charger Outlet – White
SKU: #379294
Part: #GUAC2-W
UPC: 078477996119
Total Price: $54.41 per each Sold in increments of 1 each
Description
20A SmartlockPro® Self-Test GFCI Combination 24W(4.8A) Type A/C USB In-Wall Charger Outlet – White
This SmartlockPro® Self-Test GFCI Combination USB In-Wall Charger by Leviton integrates a 20 Amp, 125 Volt receptacle with tamper-resistant outlets and a 24W (4.8A) Type A/C USB charger. Designed for residential and commercial applications requiring ground-fault circuit interrupter protection, it is suitable for kitchens, bathrooms, and other areas where electrical safety is critical. The device features self-testing GFCI technology that automatically monitors and tests the outlet's safety functions, ensuring reliable protection. It is engineered to meet UL and CSA standards and includes self-grounding and a thermoplastic body and face for durability.
Specifications
- Amperage: 20 amperes
- Voltage Rating: 125 volts
- NEMA Configuration: 5-20R
- USB Charging Capacity: 24W (4.8A) total power
- Number of Poles: 2
- Number of Wires: 5
- Body Material: Thermoplastic
- Face Material: Thermoplastic
- Color: White
- Grade: Commercial
- Grounding: Self-Grounding
- Dielectric Withstand: 1250 volts
- Operating Temperature: -10 degrees Celsius
- Flammability Class: UL94, 5VA
- Product Weight: 0.5180 lbs
- Country of Origin: China
- Manufacturer Part Number: GUAC2-W
Features
- Self-Test GFCI technology with automatic internal monitoring for enhanced safety
- Tamper-resistant shutters compliant with NEC® 406.12 for child safety
- Two high-powered USB charging ports with smart chip technology optimizing device charging
- Patented bridge contact prevents power delivery if line-load wiring is reversed
- Advanced electronics resist electrical surges and over-voltages
- Patented Reset Lockout Action prevents reset if GFCI is damaged
- Status indicator light displays power and protection status, including line/load reversal
- No data transfer capability on USB ports for device safety
- USB ports tested to withstand over 10,000 insertions and compatible with USB 3.1, 3.0, 2.0, and 1.1 devices
- Silver alloy contacts for improved conductivity and durability
- Impact-resistant thermoplastic cover and body
- One-piece T-design trip latch mechanism for efficient operation
- Compatible with all Decora® devices and screwless wallplates
- Includes screws and self-grounding clip for installation
- Meets UL Standard 943 Class A and CSA Standard C22.2 for GFCI and receptacles
- Limited two-year product warranty
