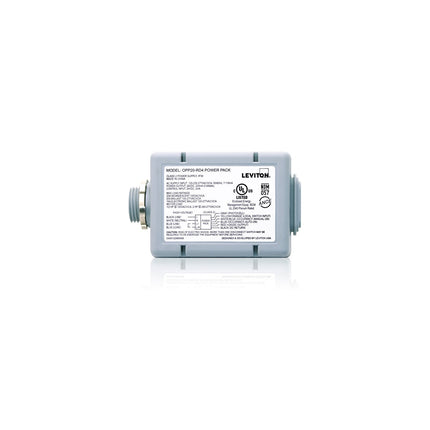

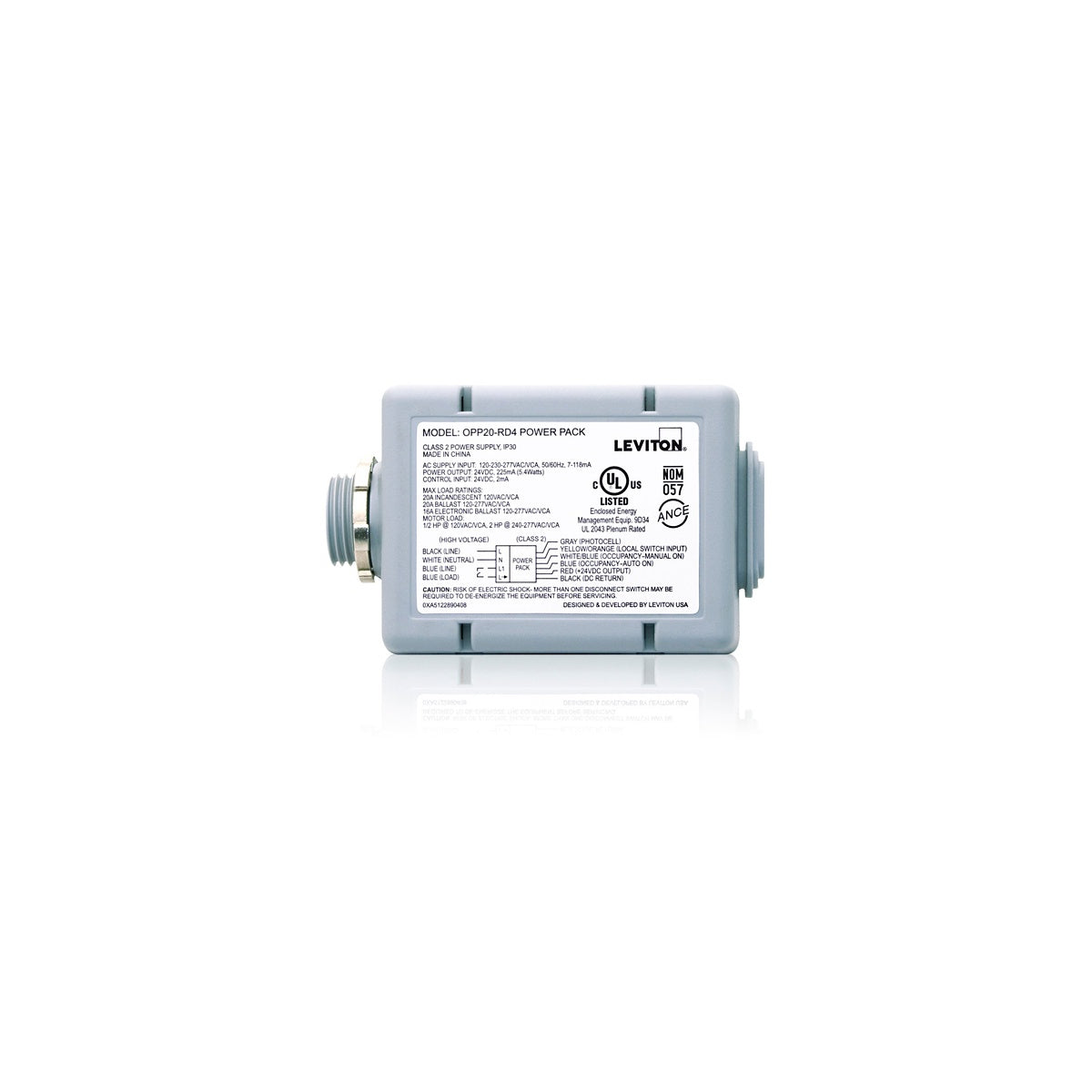

20A Power Pack for Occupancy Sensors - Leviton OPP20-RD4

The Leviton 20A Power Pack (Model OPP20-RD4) is a super duty power pack designed for occupancy sensor applications, providing reliable power and load switching control. Suitable for general purpose plug load control, this power pack supports compliance with energy codes such as NY LL48, IECC, ASHRAE 90.1, and 2022 Title 24, Part 6 for daylight harvesting, demand response, bi-level switching, and receptacle control. It is ideal for electrical distributors, lighting solutions providers, and switchgear suppliers seeking robust and code-compliant control components for wire and cable installations in commercial environments.

Specifications

• Manufacturer: Leviton
• Model Number: OPP20-RD4
• Power Input: 120-230-277VAC, 50/60 Hz
• Relay Rating: 20A, 2400W @ 120V (Resistive, General Purpose, Incandescent, Fluorescent), 16A, 1920VA @ 120V (Electronic Ballasts), 16A, 1920W @ 120V (LED), 20A, 5540W @ 277V (Resistive, General Purpose, Fluorescent), 16A, 4430VA @ 277V (Electronic Ballasts), 16A, 4430W @ 277V (LED), 1/2 HP @ 120V Motor Load, 2 HP @ 240/277V Motor Load
• Control Inputs: Auto-ON, Manual-ON, Local Switch, Photocell (switching only) ready
• Power Supply Output: 24VDC, 225mA, 5.4W
• Dimensions: 2.40" H x 3.81" W x 1.43" D (60.96mm x 96.80mm x 36.37mm)
• Construction: High impact, UL rated plastic case; 60A rated magnetic latching relay with silver alloy contacts; 6" 18AWG input leads, 14AWG load leads, 8" 22AWG LV connections
• Operating Temperature: 32 to 122¬∞F (0 to 50¬∞C)
• Relative Humidity: 0 to 90% non-condensing, indoor use only
• Color: Gray
• Certifications: UL/cUL 916 Listed for Energy Management Equipment, FCC Certified, NOM Certified, RoHS Compliant
• Compliance: Meets NY LL48, IECC, ASHRAE 90.1, and Title 24, Part 6 energy code requirements
• Warranty: Limited five-year warranty

Features

• Robust mechanically held latching relay for dependable performance and power savings over electrically held relays
• Industry exclusive fail-safe circuitry with return-to-closed capability for safe operation in case of product failure
• High Inrush Stability (H.I.S.) circuitry designed to handle high inrush electronic ballast loads
• Factory calibrated zero crossing for extended relay life
• Power supply output short circuit protection
• Optimal installation flexibility: mounts inside or outside fluorescent ballast cavity or junction box
• Class 2 wires are Teflon coated for UL 2043 Plenum Rated applications
• Configurable for Auto-ON and Manual-ON occupancy sensor inputs, local switch inputs, and photocell switching
